300sheets/Min Double Rotary Paper Sheeting Machine 1800mm Automatic Roll Paper Cutter

High Precision Double Rotary Paper Sheeting Machine 300m/min Cutting Speed

Our AC Servo drive high precision double rotary sheet cutter paper machine incorporates advanced technology from Taiwan and Britain. Featuring:

• AC servo motor drive for fast and stable cutting speed
• German precision cutting knives for exceptional accuracy

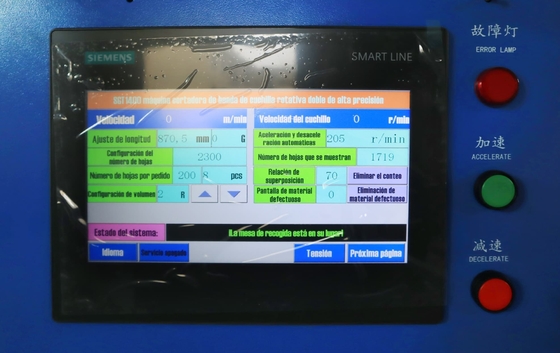

• Intuitive touch computer interface for easy operation
• Technology and performance comparable to international standards
• Widely used in paper mills and printing factories

Key Features:

• INK JET system
• Automatic pallet change system
• Automatic paper splicing system
• Full automation capability, saving up to 70% labor costs
• High Precision Synchronize-fly Sheeter delivers fibre-less, clean cuts
• Ideal for board paper, art paper, kraft paper, and packing paper/board

• Adjustable slitting knife and exhaust tube for waste edge on both sides
• Top slitter: Adjustable up or down, slitting width can be adjusted manually
• Bottom slitter: Fixed position, slitting width adjustable manually
• Windmill: Driven by 5.5kw motor
• Type-Y collecting pipe for waste edge

• Top and bottom Tool Apron uses advanced cutting method to reduce noise and load while extending knife life
• Main driving roller features grainy surface with air pressure control for optimal paper grip

Anti-static bar effectively eliminates static in sheets

• Horizontal conveying with multi-stage design for efficient counting and piling
• Includes high efficiency dust collecting equipment
• First conveying stage: Quickly separates cutting paper
• Second conveying stage: Tile-shaped conveyance with slow speed, single or linkage acting control

• Precisely inserts labels after counting
• Functions:
  • Operates according to requirements after inputting number of paper pieces in HMI
  • Refills defective products automatically

• AC servo motor for reclaiming blade
• AC motor for paper conveyor
• Inverter motor for secondary conveyor strap
• AC motor for stacker up/down movement
• AC motor for front jogger
• AC motor for waste edge collection windmill
• AC motor for unwind stand

Automatically controls tension based on paper roll diameter and weight input into touch screen

Precision sensing nozzle that quickly detects various web lines for EPC system
