| Brand Name: | CHM Machinery |
| Model Number: | 400/1700/1900（Standard Type） |
| MOQ: | 1 set |
| Price: | 160000-240000 |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |
| Attribute | Value |
|---|---|
| Cutting Way | Upper and lower rotary cutting mechanism |
| Refence weight of cutting paper | 200-1000GSM |
| Cutting accuracy | ±0.5mm |
| Max cutting speed | 300sheets/min |
| Max.cutting meter speed | 300m/min |
| Cutting length range | 450-1650mm |
| Max scroll diameter | 1800mm |
| Stacking height Of paperboard | 1300mm |

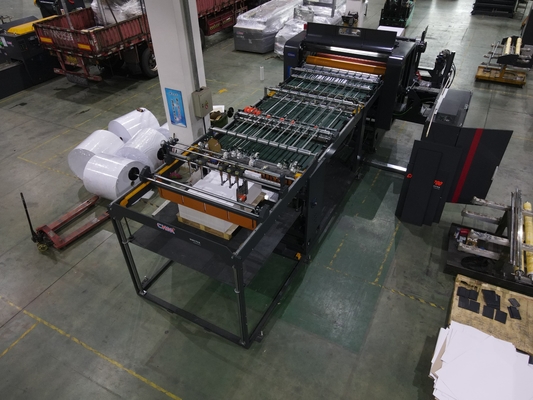

Our High Precision Synchronize-fly Sheeter delivers fiber-less, clean cuts with exceptional dimensional accuracy. Ideal for processing board paper, art paper, kraft paper, and packing paper/board.
This AC Servo-driven double rotary sheet cutter incorporates advanced technology from Taiwan and Britain, featuring:

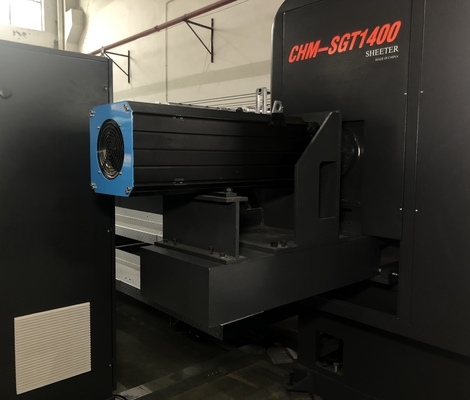

| CHM Type | CHM-SGT1400 | CHM-SGT1700 | CHM-SGT1900 |
|---|---|---|---|
| Max.paper-cutting width | 1400mm | 1700mm | 1900mm |
| Weight | 15000kg | 17000kg | 18400kg |
| Dimension(LxWxH) | 14453mm*4675mm*2350mm | 14453mm*4975mm*2350mm | 14453mm*5175mm*2350mm |

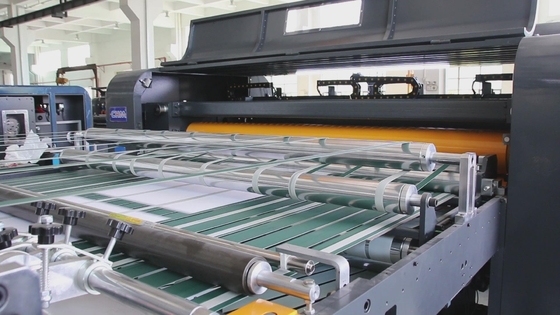

Top and bottom Tool Apron adopts advanced cutting technology to reduce noise and load while extending knife life.
Anti-static bar effectively eliminates static in sheets for improved handling.
Precisely counts and inserts labels according to programmed requirements in HMI.
Established in 2004, CHM Machinery has grown into a professional paper sheeter machine manufacturer with three factories across Guangdong, Shandong, and Jiangsu totaling 140,000 square meters - making us the world's second largest sheeting machine manufacturer.
With annual sales exceeding 200 units to over 100 countries, we offer:
All parts are guaranteed for one year with lifetime maintenance support. Outside warranty, we provide spare parts and services at preferential prices.
We conduct pre-production samples before mass production and final inspection before shipment.
We are the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide, extensive patents, and the best R&D team.
