| Brand Name: | CHM Machinery |
| Model Number: | CHM-SGT1500H II |
| MOQ: | 1 set |
| Price: | 160000-300000 |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |

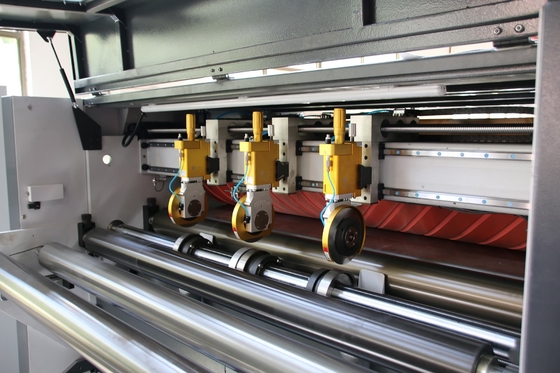

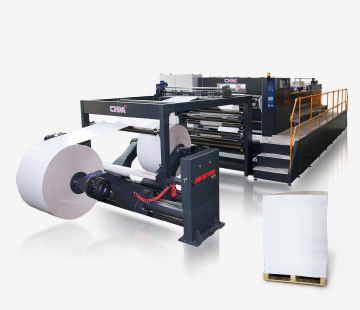

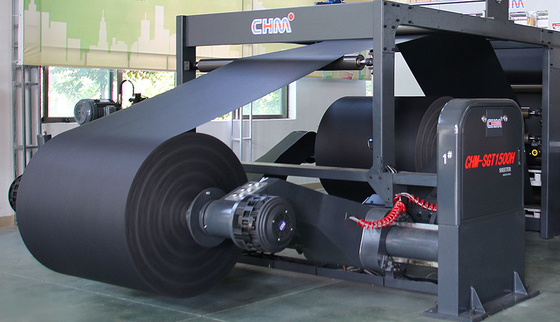

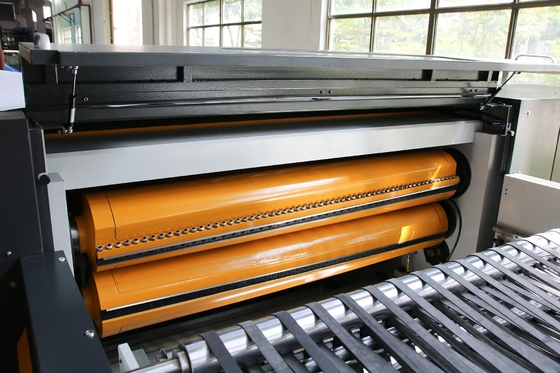

High Precision Synchronize-fly Sheeter features fiber-less clean cuts with high dimensional precision. Ideal for board paper, art paper, kraft paper, packing paper, and various board materials.
| Type of cutting | Top blade and bottom blade rotary |
| Weight of paper | 150-1000 GSM |
| Number of rolls cutting | 4 rolls |
| Reel diameter | Max 1800mm (71") |
| Finished width | Max 1500mm (59") |
| Finished sheet length | Min 400 - Max 1700 mm |
| Total power | 98KW |
| Voltage | AC380V/220V x 50Hz |
| Parameter | Details |
|---|---|
| Model | CHM-SGT1500H II |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 400 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Output | Depends on material, weight of paper, and operating process |
Established in 2004, CHM Machinery specializes in paper sheeter machines and A4 production lines. With three factories in Guangdong, Shandong, and Jiangsu covering 140,000 square meters, we've grown to become the world's second largest sheeting machine manufacturer with independent production capacity.
Our annual production exceeds 200 units, exported to over 100 countries worldwide. We offer customized solutions based on your specific paper type, gram weight, width, and capacity requirements.
Our machines offer exceptional stability with ±0.3mm cutting accuracy. They handle a wide range of paper weights from 65g to 800g. The fully automatic configuration reduces labor while increasing production capacity.
Yes, we have numerous successful installations demonstrating our ±0.3mm accuracy, including major paper mills like ND Paper and Zhonghua Commerce.
As pioneers in China's paper sheeter machine industry with over 21 years of experience, we offer unmatched expertise. Our engineers average 15+ years of experience, and many customers have used our equipment for over a decade.
We conduct pre-production samples before mass production and final inspections before shipment. All parts are guaranteed for one year, with lifetime maintenance support.
