| Brand Name: | CHM Machinery |
| Model Number: | CHM-SGT1400E/1700E/1900E |
| MOQ: | 1 set |
| Price: | 120000-180000 |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |
| Attribute | Value |
|---|---|
| Type of cutting | Top blade and bottom blade rotary |
| Weight of paper | 200-1000 GSM |
| Reel diameter | Max 1800mm (71") |
| Finished width | Max 1400mm (55") |
| Finished sheet-Length | Min.450-Max.1650 mm |
| Num.of rolls cutting | 2 rolls |
| Cutting accuracy | ±0.5mm(L<1000mm) ±0.1% (L≥1000mm) |
| Voltage | AC380V/220Vx50Hz |
This high-performance paper sheeter features top and bottom tool aprons for precise cutting of thick paper. With a cutting speed of 300m/min and gram range of 40-1000g, it can simultaneously cut up to 4 rolls of heavy paper (200g+), significantly improving work efficiency and production capacity.

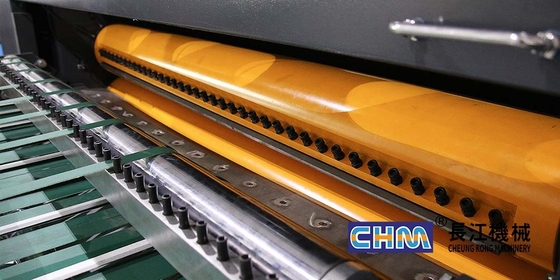

The double rotary knife system utilizes flying shear cutting (synchronous/variable speed cutting) that adjusts knife speed during paper conveyance to ensure perfect synchronization. This advanced technology delivers fiber-less, clean cuts with high dimensional precision, eliminating paper hair and allowing direct printing without secondary processing.
Ideal for board paper, art paper, kraft paper, and packing paper/board applications.
| Parameter | Specification |
|---|---|
| Model | CHM-SGT1400E |
| Max Speed of Cutting | 300 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Total Power | 84 KW |
| Output | Dependent on material, paper weight, and operating process |
All parts are guaranteed for one year with lifetime maintenance from CHM Machinery. Outside warranty, we provide spare parts and services at preferential prices.
We always provide pre-production samples before mass production and conduct final inspections before shipment.
We are the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide (140,000 sqm). Our R&D team holds over 110 patents, making us sheet solution experts.
