1400mm Double Rotary Paper Sheeting Machine 200GSM 1000GSM Roll To Sheet Cutter Machine

Brand Name:	CHM Machinery
Model Number:	CHM-SGT1400E（Economic Type）
MOQ:	1 set
Price:	120000-180000
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200 sets

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Type Of Cutting:

Top Blade And Bottom Blade Rotary

Weight Of Paper:

200-1000 GSM

Reel Diameter:

Max 1800mm(71")

Finished Width:

Max 1400mm(55")

Finished Sheet-Length:

Min.450-Max.1650 Mm

Num.of Rolls Cutting:

2 Rolls

Cutting Accuracy:

±0.5mm(L<1000mm) ±0.1% (L≥1000mm)

Voltage:

AC380V/220Vx50Hz

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

1400mm double rotary paper sheeting machine

double rotary paper sheeting machine 200gsm

1000gsm roll to sheet cutter machine

Product Description

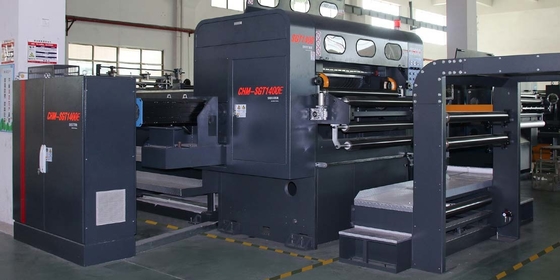

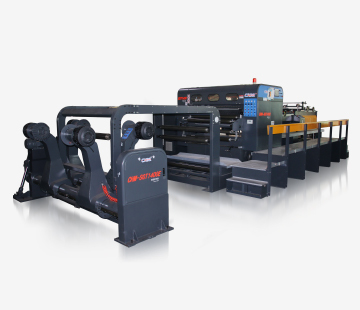

CHM-SGT1400E High Precision Synchronize-fly Sheeter for Paper Cutting

CHM-SGT1400E High Precision Rotary Paper Sheeter 1400mm Width

Key Specifications

Attribute	Value
Type of cutting	Top blade and bottom blade rotary
Weight of paper	200-1000 GSM
Reel diameter	Max 1800mm(71")
Finished width	Max 1400mm(55")
Finished sheet-Length	Min.450-Max.1650 mm
Num.of rolls cutting	2 rolls
Cutting accuracy	±0.5mm(L<1000mm) ±0.1% (L≥1000mm)
Voltage	AC380V/220Vx50Hz

Product Overview

The High Precision Synchronize-fly Sheeter delivers fibre-less, clean cuts with exceptional dimensional accuracy. Ideal for processing board paper, art paper, kraft paper, and packing paper/board.

This advanced paper cutting machine incorporates technology from Taiwan and Britain, featuring:

AC servo motor drive for fast, stable cutting operation
German precision cutting knives for superior accuracy
Intuitive touchscreen interface for easy operation
Performance comparable to international equivalents
Widely adopted by paper mills and printing facilities

Additional features include ink jet marking, automatic pallet change system, and automatic paper splicing system for complete automation that reduces labor requirements by 70%.

Technical Parameters

Parameter	Specification
Model	CHM-SGT1400E
Max Speed of Cutting	300 cuts/min
Max Cutting Speed	300 m/min
Requirement of Air Pressure	0.8 MPa
Total Power	84 KW

System Components

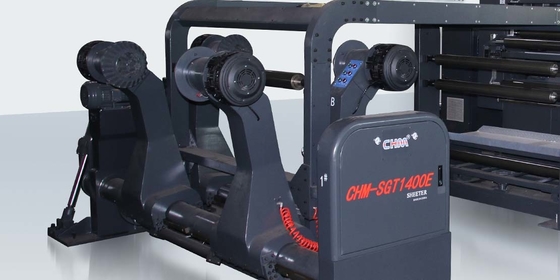

Hydraulic Shaft-less Unwind Station

Multi-disc Brake System

High Precision Synchronic-fly Cutting Unit

Conveyor Unit

Auto Jogger System

Middle Slitting and Waste Edge Collecting System

Features adjustable slitting knife and exhaust tube for waste edge collection on both sides. Includes:

Top slitter: Adjustable up/down with manual width adjustment
Bottom slitter: Fixed position with manual width adjustment
Motor-driven windmill mechanism
Type-Y collecting pipe for waste edge

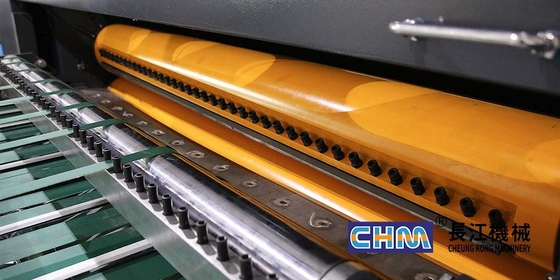

High Precision Single Rotary Sheet Cutter

Top Tool Apron: Advanced cutting method reduces noise and load while extending knife life
Bottom Tool Apron: Time-cast for enhanced stability
Main driving roller: Grainy surface with air pressure control for secure paper grip

Auto-Squareness Adjustment System

British-style fixed Tool Apron design with touchscreen-controlled automatic paper squareness adjustment.

Static Eliminator System

Anti-static bar effectively removes static from sheets.

Paper Conveyer System

Multi-stage horizontal conveying system for efficient counting and piling, featuring:

First stage: Rapid separation of cut paper
Second stage: Tile-shaped conveyance at reduced speed with single/linkage control
Integrated high-efficiency dust collection

Auto Counting and Label Inserting Device

Precision counting with automatic label insertion based on HMI input parameters, including defective product refill capability.

Driving Motor System

AC servo motor for reclaiming blade
AC motor for paper conveyor
Inverter motor for secondary conveyor strap
AC motors for stacker elevation, front jogger, and waste edge collection

Auto-tension Control

Computer-controlled automatic tension adjustment based on input paper roll diameter and weight parameters.

Auto-EPC (Edge Paper Control)

Precision sensing nozzle with fast detection of various web lines for accurate edge control.

Manufacturer Information

CHM Machinery specializes in paper sheeter machines and A4 production lines, with manufacturing roots dating back to 2004. Our three factories in Guangdong, Shandong, and Jiangsu span 140,000 square meters, establishing us as the world's second largest sheeting machine manufacturer with full independent production capacity.

With over 200 annual unit sales to 100+ countries, our equipment includes the pioneering single knife sheeter developed in 2006. Our professional R&D and after-sales teams support installations worldwide.

We can verify existing installations in your region and recommend the optimal machine configuration based on your specific paper type, gram weight, width, and production requirements.

Frequently Asked Questions

What advantages do your double-knife machines have?

Our machines offer exceptional stability with ±0.3mm cutting accuracy. Capable of processing paper from 65g to 800g, our fully automatic configurations significantly reduce labor while increasing production capacity.

Can you really achieve the claimed cutting accuracy?

Our extensive installation base confirms consistent achievement of ±0.3mm accuracy, with satisfied customers including ND Paper, Zhonghua Commerce, and leading paper mills in Pakistan and India.

Why choose CHM Machinery over other suppliers?

As China's original developer of paper sheeter machines and A4 production lines, we bring 21+ years of specialized experience. Our long-term customers and engineers with 15+ years of expertise demonstrate our commitment to quality and innovation.

How do you guarantee quality?

We implement rigorous pre-production sampling and final inspections before shipment to ensure consistent quality standards.

What kind of after-sales service do you provide?

All components carry a one-year warranty with lifetime maintenance support. Outside warranty periods, we provide spare parts and services at preferential rates with prompt response times.
