| Brand Name: | CHM Machinery |
| Model Number: | 400/1700/1900（Standard Type） |
| MOQ: | 1 set |
| Price: | 60000-120000 |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |
| Attribute | Value |
|---|---|
| Cutting Way | Upper and lower rotary cutting mechanism |
| Refence weight of cutting paper | 200-1000GSM |
| Cutting accuracy | ±0.5mm |
| Max cutting speed | 300sheets/min |
| Max.cutting meter speed | 300m/min |
| Cutting length range | 450-1650mm |
| Max scroll diameter | 1800mm |
| Stacking height Of paperboard | 1300mm |

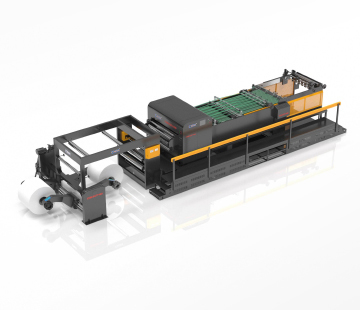

The High Precision Synchronize-fly Sheeter delivers fiber-less, clean cuts with exceptional dimensional accuracy, ideal for board paper, art paper, kraft paper, and packing paper/board applications.
This machine excels in thin paper processing, with the capability to increase Unwind Stand quantity for multi-roll operation (4-6 rolls simultaneously). Capable of handling 95% of paper market requirements with speeds up to 400 cuts/minute, it offers power efficiency, high precision, and single-operator convenience for paper mills, distributors, and printing operations.
| CHM Type | CHM-SGT1400 | CHM-SGT1700 | CHM-SGT1900 |
|---|---|---|---|
| Cutting Way | Upper and lower rotary cutting mechanism | ||
| Refence weight of cutting paper | 200-1000GSM | ||
| Cutting accuracy | ±0.5mm | ||
| Max cutting speed | 300sheets/min | ||
| Max.cutting meter speed | 300m/min | ||
| Cutting length range | 450-1650mm | ||
| Max scroll diameter | 1800mm | ||
| Stacking height Of paperboard | 1300mm | ||
| Max.paper-cutting width | 1400mm | 1700mm | 1900mm |
| Weight | 15000kg | 17000kg | 18400kg |
| Dimension(LxWxH) | 14453mm*4675mm*2350mm | 14453mm*4975mm*2350mm | 14453mm*5175mm*2350mm |
Anti-static bar effectively eliminates static in sheets for improved handling and processing.
Computer-controlled tension system automatically adjusts based on input parameters (paper roll diameter and weight) via touch screen interface.
Precision sensing nozzle provides sensitive detection of various web lines for optimal edge control.
CHM Machinery specializes exclusively in paper sheeter machines and A4 production lines, with manufacturing roots dating back to 2004. After 21 years of development, we've grown into a leading manufacturer with three factories across Guangdong, Shandong, and Jiangsu provinces, totaling nearly 140,000 square meters of production space.
As the world's second largest sheeting machine manufacturer with independent production capacity, we maintain a professional R&D team and after-sales service network. Our single knife sheeter technology has been cutting paper rolls since 2006, with annual sales exceeding 200 units distributed to over 100 countries worldwide.
We offer customized solutions based on your specific paper type, gram weight, width, and capacity requirements. Contact us to discuss the optimal model for your paper roll sheet cutting needs.
Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, C&CJOINTPRINTING CO.(HK)LID, and other leading paper mills.
All components carry a one-year warranty with lifetime maintenance support. Outside warranty periods, we provide spare parts and services at preferential prices.
Pre-production samples for approval followed by final inspection before shipment ensure consistent quality standards.
Paper sheeter machines, paper cutters, copy paper and packaging machines, cut-to-size paper solutions.
Headquartered in Guangdong, China since 2010, we serve global markets with 101-200 employees, distributing to East Asia, Africa, South America, Europe, North America, and other regions.
