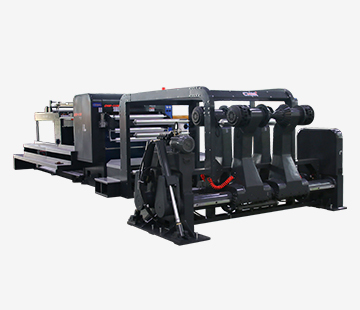

CHM-1100 Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper

Name: CHM-1100 Paper Roll Sheeter Machine Printing Packaging Sheeting Machine For Paper
Brand: Dongguan Chun Hing Mechanical Technology Co., Ltd.
SKU: CHM-1100
Price: 85,000.00 USD
Availability: InStock

Brand Name:	CHM Machinery
Model Number:	CHM-1100
MOQ:	1 set
Price:	50000-120000
Payment Terms:	,L/C,D/A,D/P,T/T
Supply Ability:	200 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Machine Weight:

2500kg

Type Of Cutting:

Top Blade Rotary, Bottom Blade Fixed

Weight Of Paper:

60-500 GSM

Reel Diameter:

Max 1500mm (59")

Finished Width:

Max 1100mm (43")

Finished Sheet Length:

Min. 450 - Max. 1300 Mm

Number Of Rolls Cutting:

2 Rolls

Total Power:

22 KW

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

220V paper roll sheeter machine

50HZ paper roll sheeter machine

Printing Packaging sheeting machine for paper

Product Description

High Speed Paper Sheeter for Printing Packaging

CHM-1100 High Speed Paper Sheeter for Printing Packaging

Product Overview

CHM-1100 High Speed Paper Sheeter for Printing Packaging

A servo-driven high speed, high precision and high efficiency sheeter. Capable of handling a wide range of paper types including board paper, art paper, and kraft paper. Widely used in printing, packaging, and paper supply industries.

Technical Specifications

Attribute	Specification
Model	CHM-1100
Machine Weight	2500kg
Type of Cutting	Top blade rotary, bottom blade fixed
Weight of Paper	60-500 GSM
Reel Diameter	Max 1500mm (59")
Finished Width	Max 1100mm (43")
Finished Sheet Length	Min. 450 - Max. 1300 mm
Number of Rolls Cutting	2 rolls
Cutting Accuracy	±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm)
Max Speed of Cutting	300 cuts/min
Total Power	22 KW
Voltage	AC 380V/220V x 50Hz

Standard Configuration

Max Reel diameter: 1500mm (59")
Max Reel width: 1100mm (43")
Min Reel width: 350mm (14")
Core size: 3", 6", 12" (Cone chuck)
HYD. Driving: 3.75kw
Clip arm movement driven by HYD
Pneumatic brake system
Dancing roll with related bracket

Slitting and Waste Collection System

Adjustable slitting knife and exhaust tube for waste edge on both sides
Top slitter: Adjustable up/down with manual width adjustment
Bottom slitter: Fixed with manual width adjustment
Windmill: Driven motor
Type-Y collecting pipe for waste edge

High Precision Rotary Sheet Cutter

Top Tool Apron: Advanced cutting method reduces noise and load while extending knife life
Bottom Tool Apron: Cast and processed for stability
Main driving roller: Grainy surface with air pressure control for paper grip

Advanced Control Systems

Auto-Squareness Adjustment with touch screen calibration
Static Eliminator System with anti-static bar
Auto-tension control via computer based on paper parameters
Auto-EPC (Edge Paper Control) with precision sensing nozzle
Electric De-curl system for paper curvature reduction

Paper Conveyor & Stacking System

Horizontal multi-stage conveying for efficient counting and piling
First stage: Quick paper separation
Second stage: Tile-shaped conveyance with speed control
Auto counting and label inserting device
Auto Jogger System with HYD piling stand (max stack height 1200mm/47")

Electrical & Drive Systems

User-friendly electric control system with direct parameter input
Multiple AC servo and inverter motors for various functions
Precision motor control for all operational components
