300m/Min 0.8MPa Paper Sheeter 380V Paper Sheet Cutting Machine

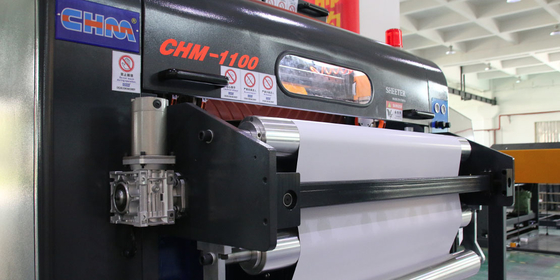

This high-speed precision paper sheeter excels in thin paper processing, featuring a "Top blade rotary, bottom blade fixed" flying shear design. The machine can be configured with additional Unwind Stands to handle multiple paper types simultaneously, making it ideal for processing various paper weights including 70 grams double-sided paper with 4 or 6 rolls.

Capable of handling 95% of paper market requirements with cutting speeds up to 400 cuts/minute, this energy-efficient machine delivers high precision and productivity. A single operator can manage multiple units simultaneously.

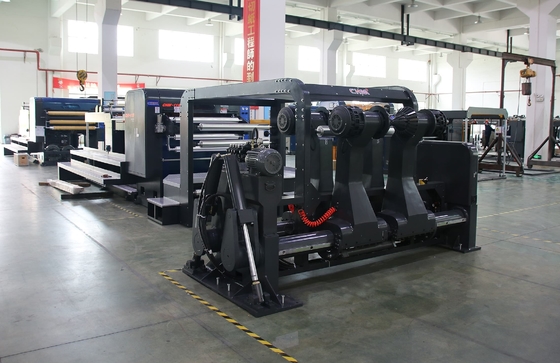

• Max Reel diameter: 1500mm (59")
• Max Reel width: 1100mm (43")
• Min Reel width: 350mm (14")
• Core size: 3", 6", 12" (Cone chuck)
• HYD. Driving: 3.75kw
• Clip arm movement (forward/back and up/down) driven by HYD
• Pneumatic brake system
• Dancing roll with related bracket

• Adjustable slitting knife and exhaust tube for waste edge on both sides
• Top slitter: Adjustable up/down with manual width adjustment
• Bottom slitter: Fixed position with manual width adjustment
• Windmill: Driven motor
• Type-Y collecting pipe for waste edge

• Top Tool Apron: Advanced cutting method reduces noise and load while extending knife life
• Bottom Tool Apron: Cast and processed for maximum stability
• Main driving roller: Grainy surface with air pressure control for optimal paper grip

• British-style fixed Tool Apron for enhanced efficiency
• Automatic paper squareness adjustment via touch screen calibration

• Anti-static bar effectively eliminates static in sheets

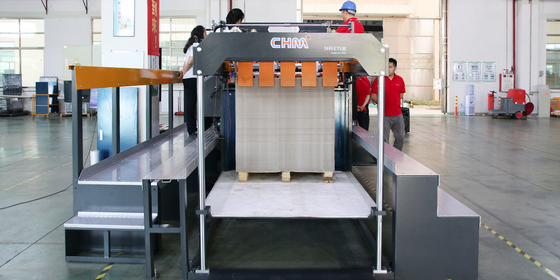

• Horizontal conveying with multi-stage design for efficient counting and piling
• First stage: Quickly separates cut paper
• Second stage: Tile-shaped conveyance with adjustable speed control

• Precise counting and label insertion
• Programmable via HMI interface
• Automatic defective product refill capability

• User-friendly operation interface
• Direct input for cutting length, quantity, and total production count
• Real-time display of cutting parameters

• AC servo motor for reclaiming blade
• AC motor for paper conveyor
• Inverter motor for secondary conveyor strap
• AC motors for stacker movement, front jogger, waste edge collection, and unwind stand

Automatically adjusts tension based on paper roll diameter and weight parameters entered via touch screen.

Precision sensing nozzle with high sensitivity for accurate web line detection.

Reduces curvature in the core section of paper for improved flatness.

CHM Machinery specializes in paper sheeter machines and A4 production lines, with manufacturing beginning in China in 2004. After 21 years of development, we've grown into a professional manufacturer with three factories covering nearly 140,000 square meters in Guangdong, Shandong, and Jiangsu.

As the world's second largest sheeting machine manufacturer with independent production capacity, we maintain a professional R&D team and after-sales service network. Our single knife sheeter technology has been cutting paper rolls since 2006, with annual sales exceeding 200 units distributed to over 100 countries worldwide.

We welcome inquiries about our successful installations in various countries and can recommend the most suitable model based on your specific paper type, gram weight, width, and capacity requirements.
