60GSM - 500GSM Paper Sheeter Machine 1100mm Rotary Sheet Cutting Machine

Name: 60GSM - 500GSM Paper Sheeter Machine 1100mm Rotary Sheet Cutting Machine
Brand: Dongguan Chun Hing Mechanical Technology Co., Ltd.
SKU: CHM-1100
Price: 85,000.00 USD
Availability: InStock

Brand Name:	CHM Machinery
Model Number:	CHM-1100
MOQ:	1 set
Price:	50000-120000
Payment Terms:	,L/C,D/A,D/P,T/T
Supply Ability:	200 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Machine Weight:

2500kg

Type Of Cutting:

Top Blade Rotary, Bottom Blade Fixed

Weight Of Paper:

60-500 GSM

Reel Diameter:

Max 1500mm (59")

Finished Width:

Max 1100mm (43")

Finished Sheet Length:

Min. 450 - Max. 1300 Mm

Number Of Rolls Cutting:

2 Rolls

Total Power:

22 KW

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

60GSM Paper Sheeter Machine

500GSM Paper Sheeter Machine

1100mm rotary sheet cutting machine

Product Description

Automatic Roll Paper Cutting Machine Paper Sheeting Machine Printing Packaging

Stretch Film, shipping mark, bubble wrap

Product Overview

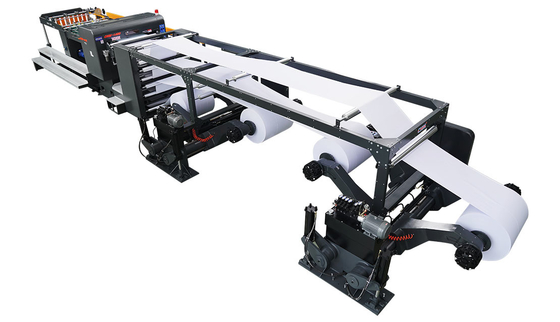

CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging

This servo-driven machine excels in thin paper processing with high speed (up to 400 cuts/min), precision (±0.5mm accuracy), and efficiency. Capable of handling 60-500 GSM paper, it's ideal for printing, packaging, and paper suppliers. The modular design allows for multiple roll processing simultaneously.

Key Specifications

Attribute	Specification
Machine Weight	2500kg
Type of Cutting	Top blade rotary, bottom blade fixed
Weight of Paper	60-500 GSM
Reel Diameter	Max 1500mm (59")
Finished Width	Max 1100mm (43")
Finished Sheet Length	Min. 450 - Max. 1300 mm
Number of Rolls Cutting	2 rolls
Total Power	22 KW

Technical Details

Main Technical Parameters

Parameter	Specification
Model	CHM-1100
Cutting Accuracy	±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm)
Max Speed of Cutting	300 cuts/min
Max Cutting Speed	300 m/min
Requirement of Air Pressure	0.8 MPa
Voltage	AC 380V/220V x 50Hz

Standard Configuration

Max Reel diameter: 1500mm (59")
Max Reel width: 1100mm (43")
Min Reel width: 350mm (14")
Core size: 3",6",12" (Cone chuck)
HYD. Driving: 3.75kw
Pneumatic brake system
Dancing roll with related bracket

Advanced Systems

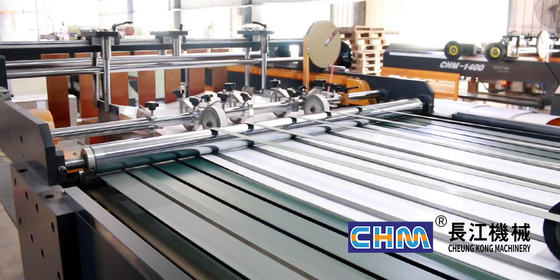

Middle Slitting and Waste Edge Collecting System

Adjustable slitting knife and exhaust tube for waste edge on both sides
Top and bottom slitters with manual width adjustment
Type-Y collecting pipe for waste edge

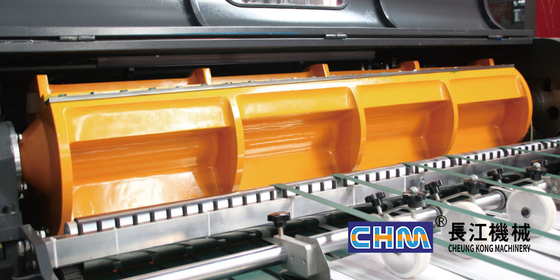

High Precision Single Rotary Sheet Cutter

Advanced cutting method reduces noise and extends knife life
Stable bottom tool apron with precision casting
Grainy surface main driving roller with air pressure control

Auto-Squareness Adjustment System

British-style tool apron with automatic squareness adjustment via touch screen calibration.

Static Eliminator System

Anti-static bar effectively eliminates static in sheets.
