| Brand Name: | CHM Machinery |
| Model Number: | CHM-1400/1700/1900 |
| MOQ: | 1 set |
| Price: | 60000-120000 |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |
| Cutting Way | Top blade rotary, bottom blade fixed |
| Reference weight of cutting paper | 60-550GSM |
| Cutting accuracy | ±0.5mm |
| Max cutting speed | 300sheets/min |
| Max.cutting meter speed | 300m/min |
| Cutting length range | 450-1650mm |
| Max scroll diameter | 1800mm |
| Stacking height Of paperboard | 1500mm(59") |

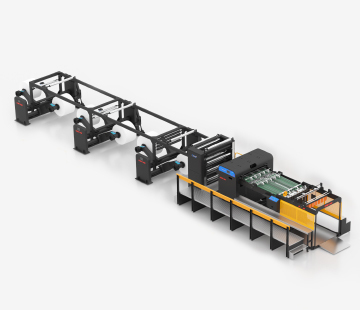

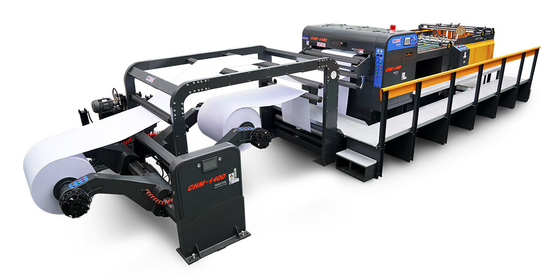

The CHM Series High Speed Precision Paper Sheeter features a servo-driven cutting system with "fixed bottom knife and rotating upper knife" design, delivering exceptional speed, precision, and efficiency for paper converting operations.
This industrial-grade sheeter handles a wide range of materials including board paper, art paper, kraft paper, and more, making it ideal for printing, packaging, and paper supply applications.
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Way | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Reference weight of cutting paper | 60-550GSM | 60-550GSM | 60-550GSM |
| Cutting accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max cutting speed | 300sheets/min | 300sheets/min | 300sheets/min |
| Max.cutting meter speed | 300m/min | 300m/min | 300m/min |
| Cutting length range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max scroll diameter | 1800mm | 1800mm | 1800mm |
| Stacking height Of paperboard | 1500mm(59") | 1500mm(59") | 1500mm(59") |
| Max.paper-cutting width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimension(LxWxH) | 12518mm*3853mm*2230mm | 12518mm*4153mm*2230mm | 12518mm*4353mm*2230mm |
CHM Machinery specializes in paper sheeter machines and A4 production lines, with manufacturing facilities established in 2004. After 21 years of development, we have grown into a professional paper sheeter machine manufacturer with three factories across Guangdong, Shandong, and Jiangsu provinces.
Our 140,000 square meter production facilities make us the world's second largest sheeting machine manufacturer with independent production capacity. We maintain a professional R&D team and after-sales service network, with annual sales exceeding 200 units distributed to over 100 countries worldwide.
We have successfully installed equipment for major paper mills including Sun Paper, ND Paper, Double A, APP, Onhing Paper, and Chenming Paper among others.
