| Brand Name: | CHM Machinery |
| Model Number: | CHM-1100 |
| MOQ: | 1 set |
| Price: | 50000-120000 |
| Payment Terms: | ,L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |

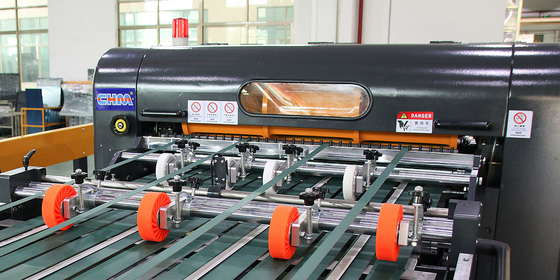

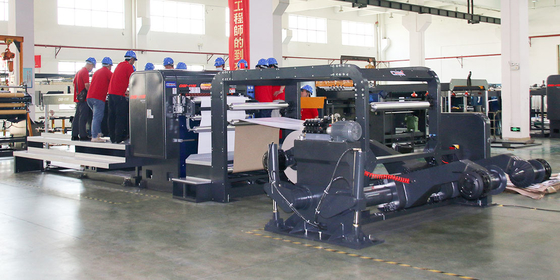

This high-speed precision paper sheeter excels in thin paper processing, featuring a "Top blade rotary, bottom blade fixed" flying shear design. The machine can be configured with additional Unwind Stands to handle multiple paper types simultaneously, making it ideal for processing various paper weights including 70 grams double-sided paper with 4 or 6 rolls.
Capable of handling 95% of paper market requirements with cutting speeds up to 400 cuts/minute, this energy-efficient machine delivers high precision and productivity. A single operator can manage multiple units simultaneously.
| Attribute | Specification |
|---|---|
| Machine Weight | 2500kg |

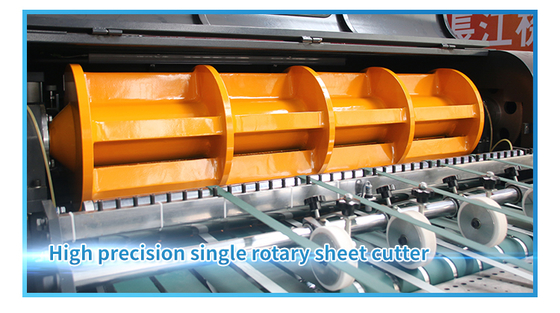

| Type of Cutting | Top blade rotary, bottom blade fixed |
| Weight of Paper | 60-500 GSM |
| Reel Diameter | Max 1500mm (59") |
| Finished Width | Max 1100mm (43") |
| Finished Sheet Length | Min. 450 - Max. 1300 mm |
| Number of Rolls Cutting | 2 rolls |
| Total Power | 22 KW |
| Parameter | Specification |
|---|---|
| Model | CHM-1100 |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 300 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Voltage | AC 380V/220V x 50Hz |
| Parameter | Specification |
|---|---|
| Type | HYD piling paper stand (auto-lowering) |
| Height of Paper Stack | Max. 1200mm (47") |
| Size of Finished Paper | Width: 1100mm (43") Length: 1300mm (51") |
| Weight of Stacker | 2500 kg |
| Jogger | Dynamic type for front and sides with adjustable tailgate |
Automatically adjusts tension based on paper roll diameter and weight parameters entered via touch screen.
Precision sensing nozzle with high sensitivity for accurate web line detection.
Reduces curvature in the core section of paper for improved flatness.
CHM Machinery specializes in paper sheeter machines and A4 production lines, with manufacturing beginning in China in 2004. After 21 years of development, we've grown into a professional manufacturer with three factories covering nearly 140,000 square meters in Guangdong, Shandong, and Jiangsu.
As the world's second largest sheeting machine manufacturer with independent production capacity, we maintain a professional R&D team and after-sales service network. Our single knife sheeter technology has been cutting paper rolls since 2006, with annual sales exceeding 200 units distributed to over 100 countries worldwide.
We welcome inquiries about our successful installations in various countries and can recommend the most suitable model based on your specific paper type, gram weight, width, and capacity requirements.
We serve major paper mills including Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, and C&CJOINTPRINTING CO.(HK)LID.
All parts are guaranteed for one year with lifetime maintenance support. Outside warranty, we provide spare parts and services at preferential prices.
We conduct pre-production samples and final inspections before shipment to ensure quality standards.
We manufacture paper sheeter machines, paper cutters, copy paper and packaging machines, and cut-to-size paper and packaging machines.
As the only Hong Kong brand sheet machinery producer in China with the second largest global facility, we offer innovative solutions with over 110 patents and a dedicated R&D team.
Headquartered in Guangdong since 2010, we serve global markets with a team of 101-200 professionals, distributing to East Asia, Africa, South America, and other regions worldwide.
