2500kg 22KW High Speed Paper Sheeter Paper Sheeting Machine 1100mm

Name: 2500kg 22KW High Speed Paper Sheeter Paper Sheeting Machine 1100mm
Brand: Dongguan Chun Hing Mechanical Technology Co., Ltd.
SKU: CHM-1100
Price: 85,000.00 USD
Availability: InStock

Brand Name:	CHM Machinery
Model Number:	CHM-1100
MOQ:	1 set
Price:	50000-120000
Payment Terms:	,L/C,D/A,D/P,T/T
Supply Ability:	200 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Machine Weight:

2500kg

Type Of Cutting:

Top Blade Rotary, Bottom Blade Fixed

Weight Of Paper:

60-500 GSM

Reel Diameter:

Max 1500mm (59")

Finished Width:

Max 1100mm (43")

Finished Sheet Length:

Min. 450 - Max. 1300 Mm

Number Of Rolls Cutting:

2 Rolls

Total Power:

22 KW

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

2500kg high speed paper sheeter

22KW high speed paper sheeter

paper sheeting machine 1100mm

Product Description

Automatic Roll Paper Cutting Machine Paper Sheeting Machine Printing Packaging

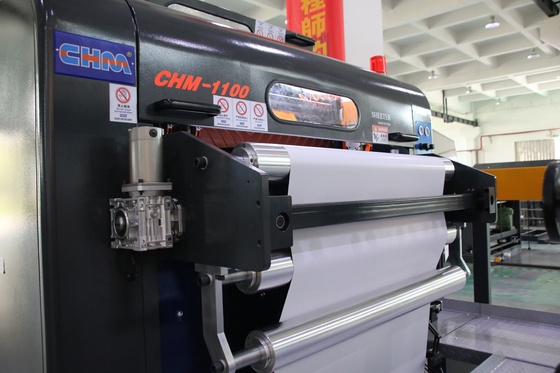

CHM-1100 High Speed Paper Sheeter Machine for Printing Packaging

Product Overview

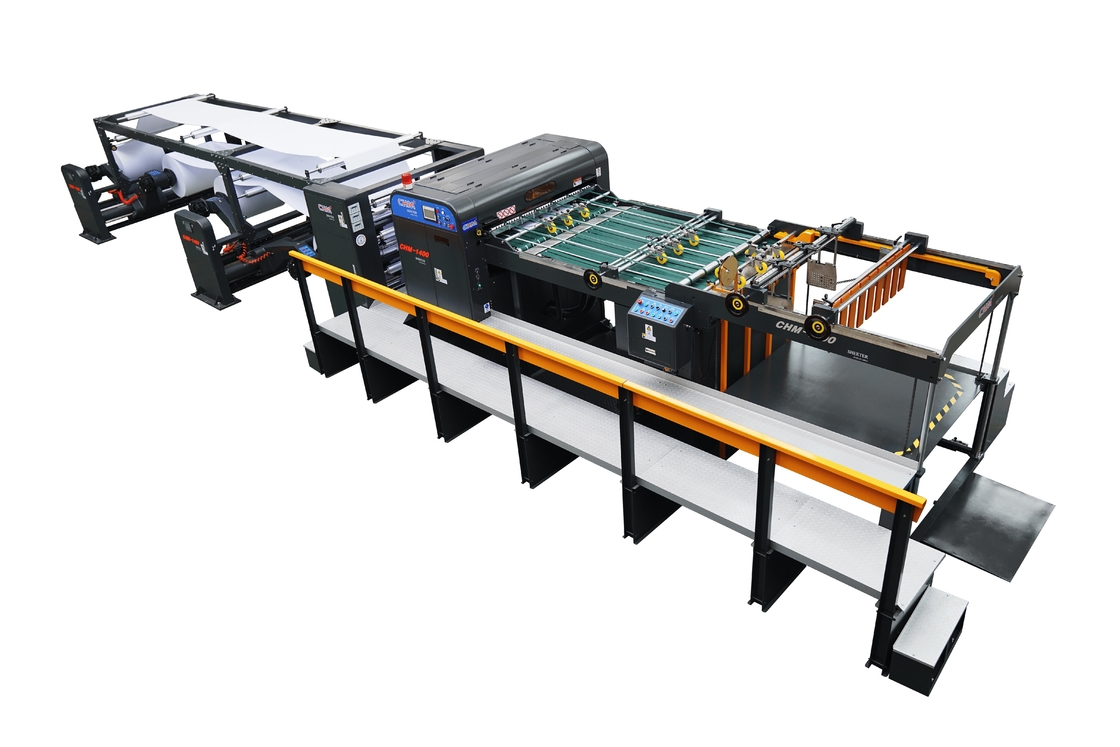

CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging

This servo-driven machine excels in processing thin papers with high speed (up to 400 cuts/min), precision (±0.5mm accuracy), and efficiency. Capable of handling multiple rolls simultaneously, it's ideal for paper mills, distributors, and printing/packaging operations.

Key Specifications

Attribute	Value
Machine Weight	2500kg
Type of Cutting	Top blade rotary, bottom blade fixed
Weight of Paper	60-500 GSM
Reel Diameter	Max 1500mm (59")
Finished Width	Max 1100mm (43")
Finished Sheet Length	Min. 450 - Max. 1300 mm
Number of Rolls Cutting	2 rolls
Total Power	22 KW

Technical Parameters

Parameter	Specification
Model	CHM-1100
Cutting Accuracy	±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm)
Max Speed of Cutting	300 cuts/min
Max Cutting Speed	300 m/min
Requirement of Air Pressure	0.8 MPa
Voltage	AC 380V/220V x 50Hz

Standard Configuration

Max Reel diameter: 1500mm (59")
Max Reel width: 1100mm (43")
Min Reel width: 350mm (14")
Core size: 3",6",12" (Cone chuck)
HYD. Driving: 3.75kw
Pneumatic brake system
Dancing roll with related bracket

Advanced Systems

Middle Slitting and Waste Edge Collecting

Adjustable slitting knife and exhaust tube for waste edge
Top and bottom slitters with manual width adjustment
Type-Y collecting pipe for waste edge

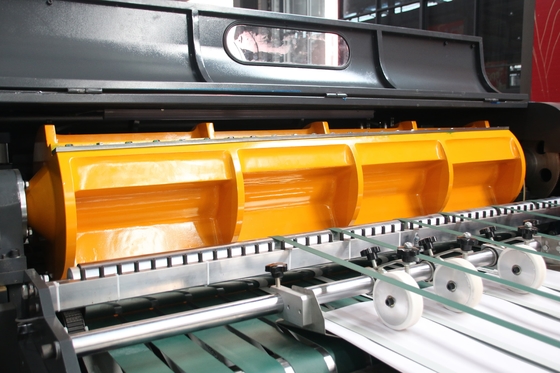

High Precision Rotary Sheet Cutter

Advanced cutting mechanism reduces noise and extends blade life
Stable bottom tool apron cast and processed for precision

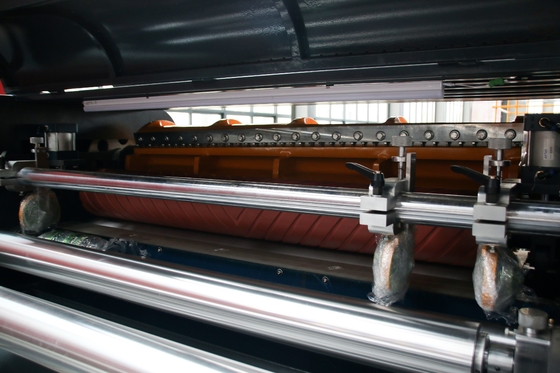

Grainy surface main driving roller with air pressure control

Auto-Squareness Adjustment

British-style tool apron with automatic squareness adjustment via touch screen calibration.

Static Eliminator System

Anti-static bar effectively eliminates static in sheets.

Paper Conveyor System

Multi-stage horizontal conveying for efficient counting and piling
High efficiency dust collection equipment

Auto Counting & Label Inserting

Precise counting with HMI input control
Automatic label insertion and defective product refill

Auto Jogger System

Parameter	Specification
Type	HYD piling paper stand (auto-lowering)
Height of Paper Stack	Max. 1200mm (47")
Size of Finished Paper	Width: 1100mm (43") Length: 1300mm (51")

Quality Assurance & Support

1-year warranty on all parts
Lifetime maintenance support
Pre-production samples and final inspection before shipment
