| Brand Name: | CHM Machinery |
| Model Number: | CHM-1400III |
| MOQ: | 1 |
| Price: | 60000-120000 |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 |

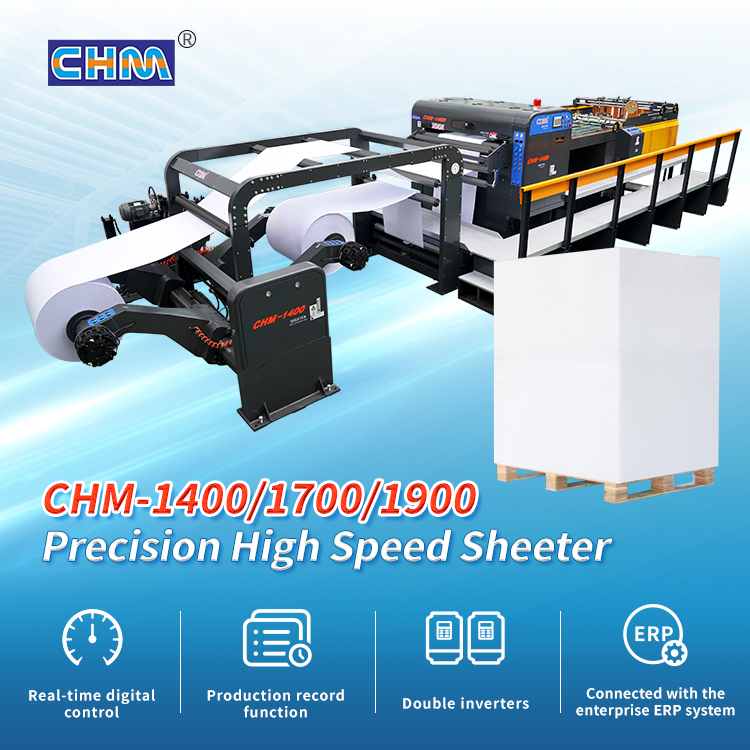

CHM Machinery's main products is a computerized high-precision single rotray sheeter, designed specifically for paper mills, paper distributors, and printing houses. It improves slitting capacity and ensures quality. This single-drum sheeter features a "Top blade rotary, bottom blade fixed" flying shear design. During paper transport, the lower blade remains stationary while the upper blade rotates continuously at high speed. This machine handles paper sizes from 60 to 550 gsm.
From single to 12 rolls, it can slit 30g Bible paper, copy paper, 40g silicone paper, and offset paper up to 500gsm thick paper, providing stable and faster speeds.
| Attribute | Specification |
|---|---|
| Machine Weight | 2500kg |
| Type of Cutting | Top blade rotary, bottom blade fixed |
| Weight of Paper | 60-500 GSM |
| Reel Diameter | Max 1500mm (59") |
| Finished Width | Max 1100mm (43") |
| Finished Sheet Length | Min. 450 - Max. 1300 mm |
| Number of Rolls Cutting | 2 rolls |
| Total Power | 22 KW |
| Parameter | Specification |
|---|---|
| Model | CHM-1100/1400/1700/1900 |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 300 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Voltage | AC 380V/220V x 50Hz |
We are manufacturers,We have many successful installation cases, we can checks whether the country has our equipment.
Please tell us your detailed requirements,According to your paper, gram weight, width,capacity , make the most suitable for your paper roll sheet cutting model.Please contact me if you have any inquiries.
Please feel free to ask any questions about our products or tell us your sourcing needs.
