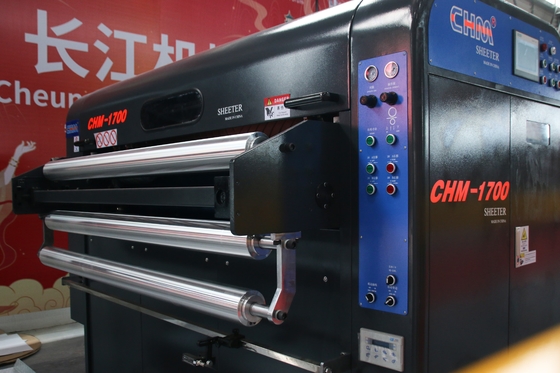

60GSM - 500GSM High Speed Paper Sheeter 300 Cuts/Min Chm Machine

60GSM - 500GSM High Speed Paper Sheeter 300 Cuts/Min Chm Machine

Brand Name:	CHM Machinery
Model Number:	CHM-1100/1400/1700/1900
MOQ:	1 SHE
Price:	60000-120000 USD
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200 SETS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product:

Paper Roll To Sheet Cutting Machine

Voltage:

380V

Power:

22kw 27kw

Max Speed:

300 Cuts/min

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

60GSM High Speed Paper Sheeter

500GSM High Speed Paper Sheeter

300 Cuts/Min chm machine

Product Description

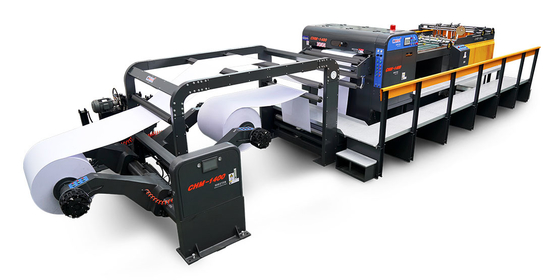

CHM Roll To Sheet Cutting Machine High Speed 240/Min Cut 300g White Cardboard Paper

AC Servo drive high precision single rotary sheet cutter paper machine. The strength of this machine is in thin paper. We can increase the number of Unwind Stand to adapt to the sheeter of more kinds of paper. For example, 70 grams of double-sided paper, 4 or even 6 rolls are sheeter at the same time, which is very easy.

The paper market 95% paper can be cut using this device, with high speed up to 400 cutting/min. Power saving, high efficiency, high precision, many sets paper sheeter machine can also be operated by a single person. We serve paper mills, paper distributors, and printing companies.

Main Technical Parameters

Parameter	Specification
Model	CHM-1100
Type of Cutting	Top blade rotary, bottom blade fixed
Weight of Paper	60-500 GSM
Reel Diameter	Max 1500mm (59")
Finished Width	Max 1100mm (43")
Finished Sheet Length	Min. 450 - Max. 1300 mm
Number of Rolls Cutting	2 rolls
Cutting Accuracy	±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm)
Max Speed of Cutting	300 cuts/min
Max Cutting Speed	300 m/min
Requirement of Air Pressure	0.8 MPa
Voltage	AC 380V/220V x 50Hz
Total Power	22 KW
Output	Dependent on material, paper weight, and operating process

Standard Configuration

Max Reel diameter: 1500mm (59")
Max Reel width: 1100mm (43")
Min Reel width: 350mm (14")
Core size: 3", 6", 12" (Cone chuck)
HYD. Driving: 3.75kw
Clip arm move forward or back driven by HYD
Clip arm up or down driven by HYD
Pneumatic brake system

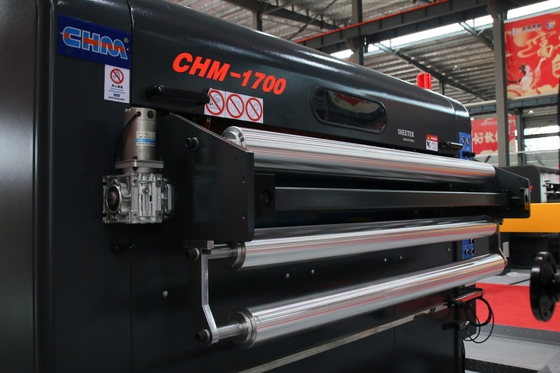

Dancing roll with related bracket

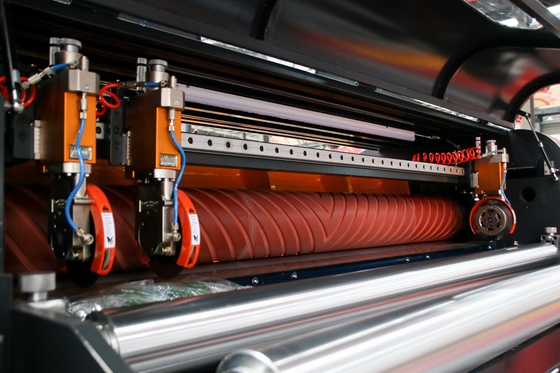

Middle Slitting and Waste Edge Collecting System

Style

Adjustable slitting knife and exhaust tube for waste edge on both sides.

Top slitter

Adjustable up or down, slitting width can be adjusted manually.

Bottom slitter

The slitter are fixed, slitting width can be adjusted manually.

Windmill: driven motor

Type-Y collecting pipe for waste edge.

High Precision Single Rotary Sheet Cutter Features

Top Tool Apron adopts advanced cutting way to decrease noise and load and prolong life of knife
Bottom Tool Apron cast on time, then processing, with characteristic of stability
Main driving roller: grainy surface, controlled by the air Pressure to grip the paper

We are manufacturers. CHM Machinery only produces paper sheeter machines and A4 production lines designed for 2 series. CHM made the first paper rolls to sheet cutting machine and A4 production line in China. CHM Machinery was established in 2004. After 21 years of hard work, it has developed into a professional paper sheeter machine manufacturer with three factories.

The three factories in Guangdong, Shandong and Jiangsu have a total area of nearly 140,000 square meters, becoming the world's second largest sheeting machine manufacturer with independent production capacity. We have the most professional after-sales team and research and development. As far as we know, the single knife sheeter in 2006 has been sheeter cutting paper rolls. Annual sales of more than 200 units, sold to more than 100 countries around the world.

We have many successful installation cases. We can check whether your country has our equipment. Please tell us your detailed requirements. According to your paper, gram weight, width, and capacity, we can make the most suitable paper roll sheet cutting model for you.

Website: www.chmsheeter.com

Email: chm017@szchm.com

Whatsapp/Wechat: 86-13215242947 (Ms. Ada)
