CHM High Speed Paper Sheeter 300 Cuts/Min Paper Sheeter Machine

CHM High Speed Paper Sheeter 300 Cuts/Min Paper Sheeter Machine

Brand Name:	CHM Machinery
Model Number:	CHM-1100/1400/1700/1900
MOQ:	1 SHE
Price:	60000-120000 USD
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200 SETS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product:

Paper Roll To Sheet Cutting Machine

Voltage:

380V

Power:

22kw 27kw

Max Speed:

300 Cuts/min

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

CHM High Speed Paper Sheeter

High Speed Paper Sheeter 300 cuts/min

300 cuts/min Paper Sheeter Machine

Product Description

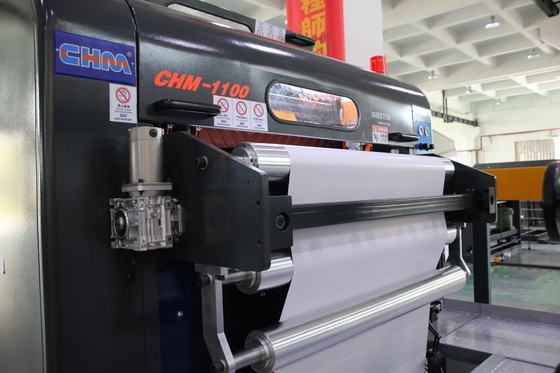

CHM Automatic High Speed 300/min Single Roll To Sheet Cutting Machine

This high-performance cutting machine excels in processing thin paper materials. The system can be expanded with additional Unwind Stand units to accommodate various paper types simultaneously. For instance, it can efficiently process 4-6 rolls of 70gsm double-sided paper at once.

Capable of handling 95% of paper market requirements, this machine delivers exceptional performance with cutting speeds up to 400 cuts per minute. Its energy-efficient design combines power savings with high precision output, allowing a single operator to manage multiple units. Ideal for paper mills, distributors, and printing operations.

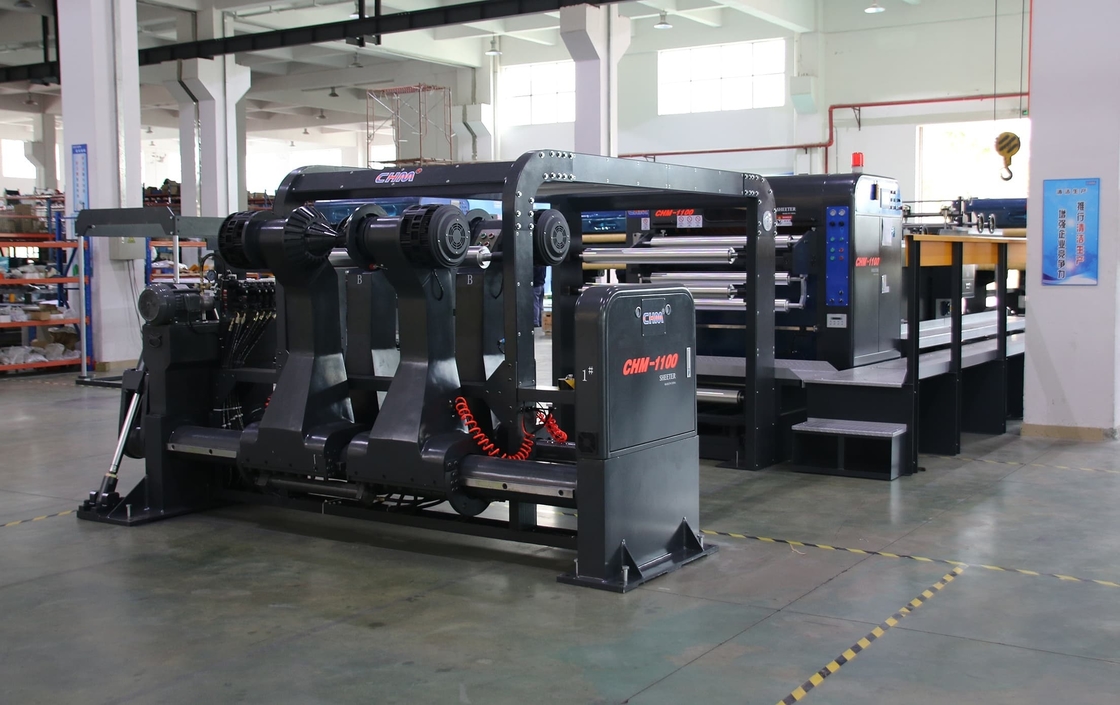

The Unwind Stand Unit features an advanced automatic tension system with electric eye detection for precise paper roll handling. Maximum paper roll capacity: 3 tons.

Main Technical Parameters

Parameter	Specification
Model	CHM-1100
Type of Cutting	Top blade rotary, bottom blade fixed
Weight of Paper	60-500 GSM
Reel Diameter	Max 1500mm (59")
Finished Width	Max 1100mm (43")
Finished Sheet Length	Min. 450 - Max. 1300 mm
Number of Rolls Cutting	2 rolls
Cutting Accuracy	±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm)
Max Speed of Cutting	300 cuts/min
Max Cutting Speed	300 m/min
Requirement of Air Pressure	0.8 MPa
Voltage	AC 380V/220V x 50Hz
Total Power	22 KW
Output	Dependent on material, paper weight, and operating process

Standard Configuration

Max Reel diameter: 1500mm (59")
Max Reel width: 1100mm (43")
Min Reel width: 350mm (14")
Core size: 3",6",12" (Cone chuck)
HYD. Driving: 3.75kw
Clip arm move forward or back driven by HYD
Clip arm up or down driven by HYD
Pneumatic brake system
Dancing roll with related bracket

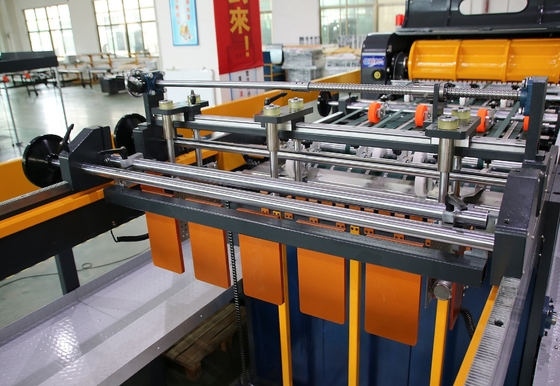

Middle Slitting and Waste Edge Collecting System

Style: Adjustable slitting knife and exhaust tube for waste edge on both sides
Top slitter: Adjustable up or down, slitting width can be adjusted manually
Bottom slitter: Fixed position with manual width adjustment
Windmill: Motor-driven operation
Type-Y collecting pipe for efficient waste edge management

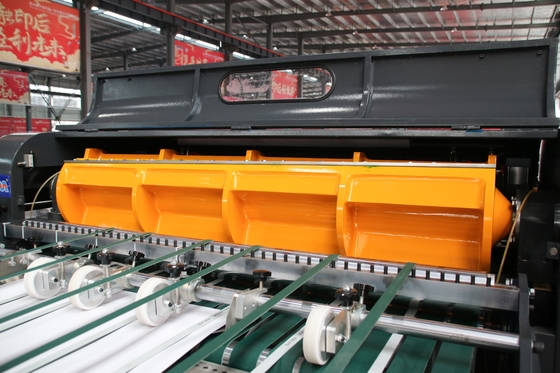

High Precision Single Rotary Sheet Cutter

Top Tool Apron utilizes advanced cutting technology to reduce noise, minimize load, and extend knife lifespan
Bottom Tool Apron features time-cast construction for exceptional stability
Main driving roller with grainy surface and air pressure control for optimal paper grip

As dedicated manufacturers since 2004, CHM Machinery specializes in paper sheeter machines and A4 production lines. With three factories spanning 140,000 square meters in Guangdong, Shandong, and Jiangsu, we've grown to become the world's second largest sheeting machine manufacturer with full independent production capacity.

Our professional R&D and after-sales teams support our global customer base. Since introducing our first single knife sheeter in 2006, we've sold over 200 units annually to more than 100 countries worldwide.

We can verify if your country already has our equipment installed. Share your specific paper type, gram weight, width, and capacity requirements, and we'll recommend the optimal cutting model for your needs.

CHM High Speed Paper Sheeter 300 Cuts/Min Paper Sheeter Machine 9

Contact Us:

Website: www.chmsheeter.com

Email: chm017@szchm.com

WhatsApp/WeChat: 86-13215242947 (Ms. Ada)
