| Brand Name: | CHM Machinery |
| Model Number: | CHM-1100/1400/1700/1900 |
| MOQ: | 1 SHE |
| Price: | 60000-120000 USD |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 SETS |

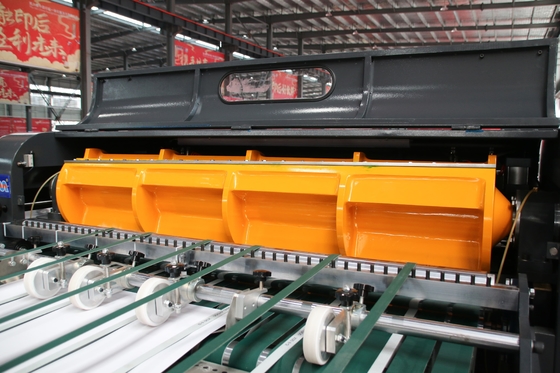

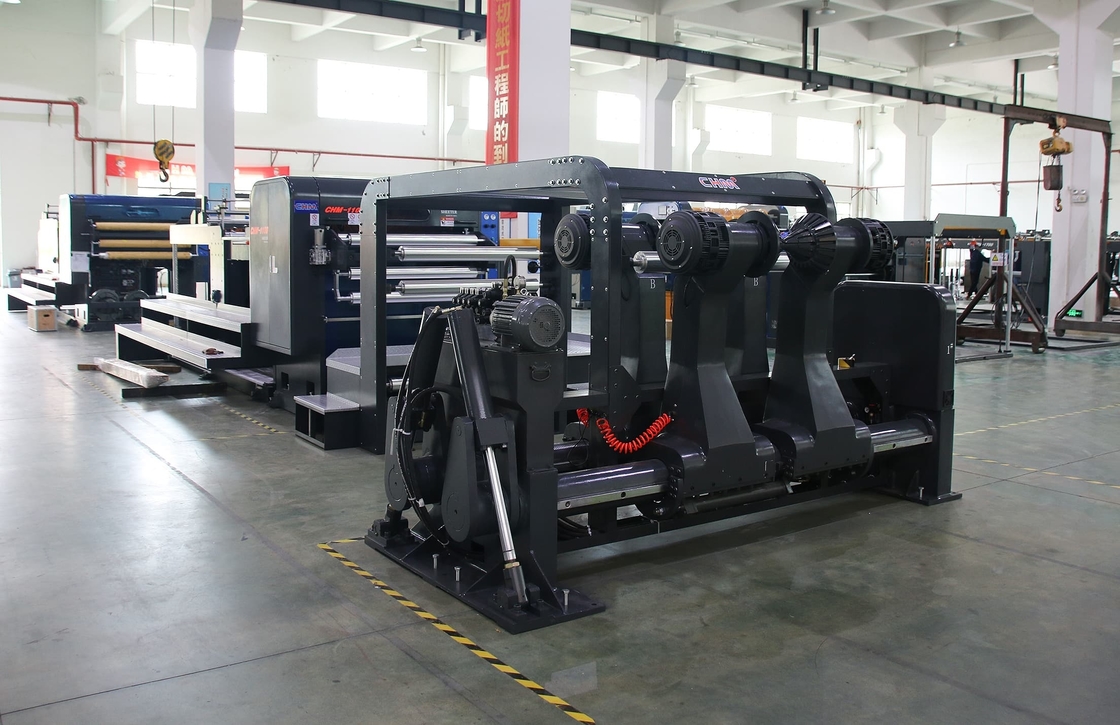

High-performance paper roll to sheets cutting machine designed for industrial-scale production with exceptional precision and efficiency.
| Parameter | Specification |
|---|---|
| Model | CHM-1100 |
| Type of Cutting | Top blade rotary, bottom blade fixed |
| Weight of Paper | 60-500 GSM |
| Reel Diameter | Max 1500mm (59") |
| Finished Width | Max 1100mm (43") |
| Finished Sheet Length | Min. 450 - Max. 1300 mm |
| Number of Rolls Cutting | 2 rolls |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 300 cuts/min |
| Max Cutting Speed | 300 m/min |
| Requirement of Air Pressure | 0.8 MPa |
| Voltage | AC 380V/220V x 50Hz |
| Total Power | 22 KW |
Established in 2004, CHM Machinery specializes in paper sheeter machines and A4 production lines. With three factories across Guangdong, Shandong, and Jiangsu totaling 140,000 square meters, we've grown to become the world's second largest sheeting machine manufacturer with independent production capacity.
Our annual production exceeds 200 units, serving customers in over 100 countries worldwide. We maintain a professional R&D team and comprehensive after-sales support network.
We can customize solutions based on your specific paper type, gram weight, width, and capacity requirements.
