Automatic 40gsm Paper Roll Sheeter Machine Printing Packaging A4 Sheet Cutting Machine

Automatic 40gsm Paper Roll Sheeter Machine Printing Packaging A4 Sheet Cutting Machine

Brand Name:	CHM Machinery
Model Number:	CHM-1400III
MOQ:	1
Price:	60000-120000
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	200

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Power:

27kW

Maximum Cutting Width:

1400mm

Paper Range:

60-500gsm

Cutting Speed:

300m/min

Maximum Cutting Length:

450-1650mm

Cutting Accuracy:

±0.5mm

Control System:

PLC Control With Touch Screen

Product:

Paper Roll To Sheet Cutting Machine

Voltage:

380V

Power:

22kw 27kw

Max Speed:

300 Cuts/min

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

Automatic paper roll sheeter machine

40gsm paper roll sheeter machine

Printing Packaging a4 sheet cutting machine

Product Description

Automatic Roll Paper Cutting Machine Paper Sheeting Machine Printing Packaging

Product Overview

CHM-1100 High Speed Precision Paper Sheeter For Printing And Packaging

This servo-driven machine excels in thin paper processing with high speed (up to 400 cuts/min), precision (±0.5mm accuracy), and efficiency. Capable of handling 60-500 GSM paper, it's ideal for printing, packaging, and paper suppliers. The modular design allows for multiple roll processing simultaneously.

CHM Machinery's main products is a computerized high-precision single rotray sheeter, designed specifically for paper mills, paper distributors, and printing houses. It improves slitting capacity and ensures quality. This single-drum sheeter features a "Top blade rotary, bottom blade fixed" flying shear design. During paper transport, the lower blade remains stationary while the upper blade rotates continuously at high speed. This machine handles paper sizes from 60 to 550 gsm.

From single to 12 rolls, it can slit 30g Bible paper, copy paper, 40g silicone paper, and offset paper up to 500gsm thick paper, providing stable and faster speeds.

Key Specifications

Attribute	Specification
Machine Weight	2500kg
Type of Cutting	Top blade rotary, bottom blade fixed
Weight of Paper	60-500 GSM
Reel Diameter	Max 1500mm (59")
Finished Width	Max 1100mm (43")
Finished Sheet Length	Min. 450 - Max. 1300 mm
Number of Rolls Cutting	2 rolls
Total Power	22 KW

Automatic 40gsm Paper Roll Sheeter Machine Printing Packaging A4 Sheet Cutting Machine 0

Technical Details

Main Technical Parameters

Parameter	Specification
Model	CHM-1100/1400/1700/1900
Cutting Accuracy	±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm)
Max Speed of Cutting	300 cuts/min
Max Cutting Speed	300 m/min
Requirement of Air Pressure	0.8 MPa
Voltage	AC 380V/220V x 50Hz

Standard Configuration

Max Reel diameter: 1500mm (59")
Max Reel width: 1100mm (43")
Min Reel width: 350mm (14")
Core size: 3",6",12" (Cone chuck)
HYD. Driving: 3.75kw
Pneumatic brake system
Dancing roll with related bracket

Automatic 40gsm Paper Roll Sheeter Machine Printing Packaging A4 Sheet Cutting Machine 2

Advanced Systems

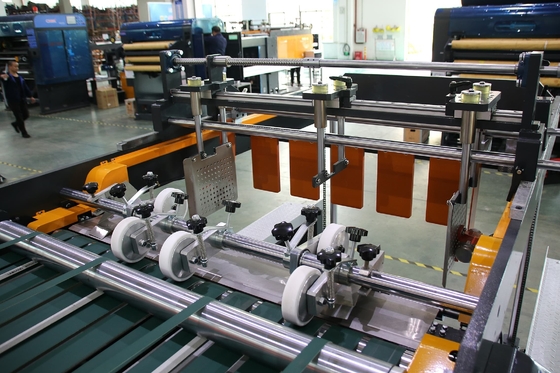

Middle Slitting and Waste Edge Collecting System

Adjustable slitting knife and exhaust tube for waste edge on both sides
Top and bottom slitters with manual width adjustment
Type-Y collecting pipe for waste edge

Automatic 40gsm Paper Roll Sheeter Machine Printing Packaging A4 Sheet Cutting Machine 3

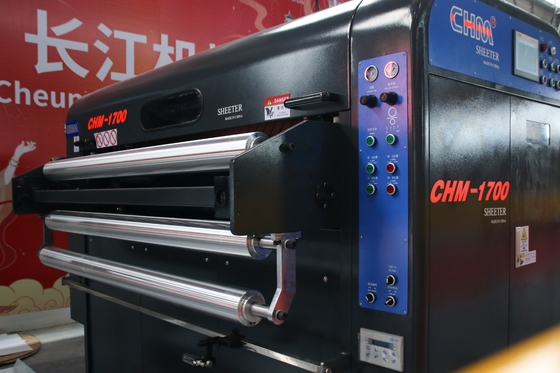

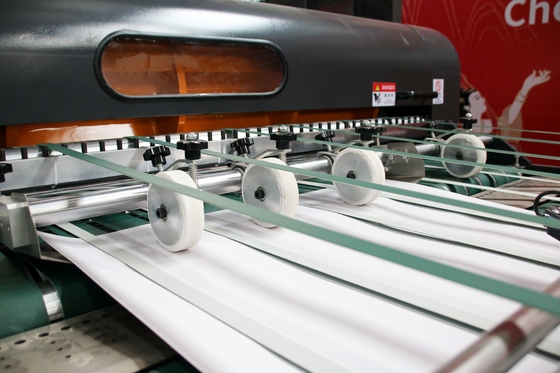

High Precision Single Rotary Sheet Cutter

Advanced cutting method reduces noise and extends knife life
Stable bottom tool apron with precision casting
Grainy surface main driving roller with air pressure control

Static Eliminator System

Anti-static bar effectively eliminates static in sheets.

Automatic 40gsm Paper Roll Sheeter Machine Printing Packaging A4 Sheet Cutting Machine 4

Company Information

Established in 2004, CHM Machinery has grown into a professional paper sheeter machine manufacturer with three factories totaling 140,000 square meters. As the world's second largest sheeting machine manufacturer, we serve over 100 countries with annual sales exceeding 200 units.

Our facilities in Guangdong, Shandong, and Jiangsu support our position as an industry leader with a dedicated R&D team and comprehensive after-sales service.

We have many successful installation cases, we can checks whether the country has our equipment.

Please tell us your detailed requirements,According to your paper, gram weight, width,capacity , make the most suitable for your paper roll sheet cutting model.Please contact me if you have any inquiries.
Please feel free to ask any questions about our products or tell us your sourcing needs.

https://www.chmsheeter.com
Email:chm017@szchm.com
Whatsapp/Wechat Us On These Nos. No: 86-13215242947 ( Ms. Ada)

Automatic 40gsm Paper Roll Sheeter Machine Printing Packaging A4 Sheet Cutting Machine 5

Automatic 40gsm Paper Roll Sheeter Machine Printing Packaging A4 Sheet Cutting Machine 6

Frequently Asked Questions

Quality & Service

1-year warranty on all parts with lifetime maintenance support
Pre-production samples and final inspection before shipment
Preferential pricing for spare parts after warranty period

Our Capabilities

Specialized in paper sheeter machines and A4 production lines
Over 110 patents in sheet machinery technology
Global distribution network serving 100+ countries
