| Brand Name: | CHM Machinery |
| Model Number: | CHM-A4B |
| MOQ: | 1 set |
| Price: | 90000 |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |

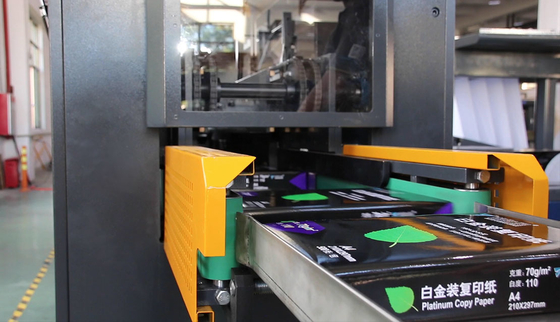

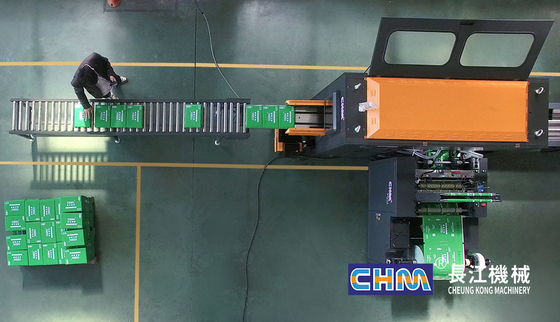

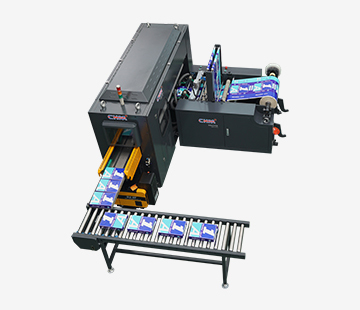

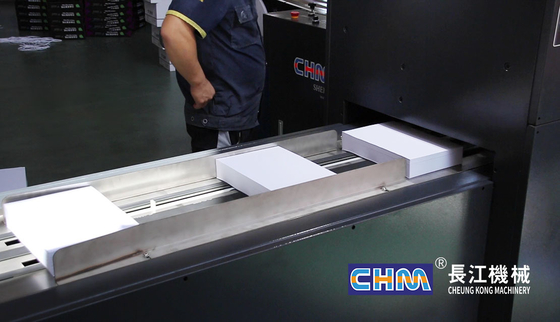

The CHM-A4B is a fully automated packaging production line integrating electrical automation, PLC control systems, and mechanical automation. This complete system handles continuous production from preparation through to packaging and discharging.
| Parameter | Details |
|---|---|
| Model | CHM-A4B |
| Paper Width | Gross width: 310 mm; Net width: 297 mm |
| Ream Packing Height | Max 55 mm; Min 45 mm |
| Packing Roll Diameter | Max 1000 mm; Min 200 mm |
| Packing Roll Width | 560 mm |
| Packing Sheets Weight | 70-100 g/m² |
| Packing Sheets Grade | High-grade copy paper, office paper, offset paper, etc. |
| Design Speed | Max 40 reams/min |
| Operation Speed | Max 35 reams/min |
| Packing Condition | No speed variations, no breaks, cuts all paper at once |
| Driving System | AC Servo Precision Control |
| Power Supply | 3*380 V / 50 Hz (or as required) |
| Control Voltage | 220 V AC / 24 V DC (or as required) |
| Power Consumption | 18 kW |
| Air Consumption | 300 NL/min at 6 bar |
