High Speed A4 Paper Cutting And Wrapping Machine Output 10 Reams/Min A4 Paper Production Line Chm Machine

Name: High Speed A4 Paper Cutting And Wrapping Machine Output 10 Reams/Min A4 Paper Production Line Chm Machine
Brand: Dongguan Chun Hing Mechanical Technology Co., Ltd.
SKU: CHM-A4-2
Price: 207,500.00 USD
Availability: InStock

Brand Name:	CHM Machinery
Model Number:	CHM-A4-2
MOQ:	1 set
Price:	165000-250000
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200 sets

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Paper Width:

Gross Width 850 Mm, Net Width 840mm

Cutting Numbers:

2 Cutting-A4 210mm (width)

Paper Roll's Diameter:

Max.Ф1400mm. Min.Ф600mm

Paper Core's Diameter:

3"(76.2mm)or According To The Clients' Demand

Packing Paper Grade:

High-grade Copy Paper; High-grade Office Paper; High Grade Free Wood Paper Etc.

Paper Weight:

60-100g/m²

Sheet Length:

297mm (specially Design For A4 Paper, The Cutting Length Is 297mm)

Ream Amount:

500 Sheets Max. Height: 45-55mm

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

high speed A4 paper cutting machine

A4 paper wrapping machine

A4 sheeter production line

Product Description

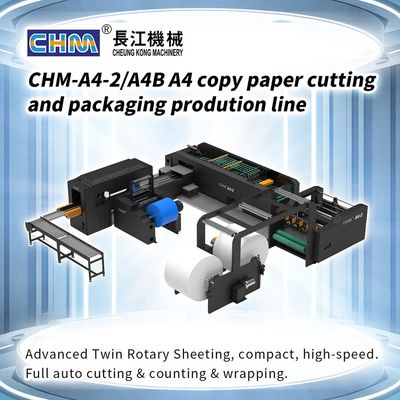

High Speed A4 Paper Cutting and Wrapping Machine

Output: 10 reams/min A4 Paper Production Line

Product Overview

The CHM-A4-2 is a compact, space-saving, high-efficiency A4 copy paper sheeting and packaging production line featuring advanced Twin Rotary Knife Synchronize Sheeting technologies. As the original developer of China's first paper sheeter machine and A4 copy paper production line, CHM Machinery has been leading the industry since 2004.

Key Specifications

Attribute	Value
Paper Width	Gross width 850 mm, net width 840 mm
Cutting Numbers	2 cutting-A4 210mm (width)
Paper Roll's Diameter	Max. Ф1400mm, Min. Ф600mm
Paper Core's Diameter	3" (76.2mm) or according to client demand
Paper Weight	60-100 g/m²
Sheet Length	297mm (specially designed for A4 paper)
Ream Amount	500 sheets Max. Height: 45-55mm

Production Capabilities

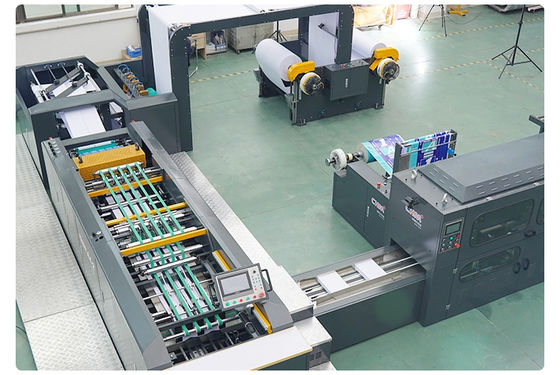

This compact A4 copy paper cutting and packaging machine production line (2 rolls and 4 pockets) delivers an output of 10 reams/min, with 8 hours production yielding 8-10 tons. Occupying only 8*9 meters of floor space, it's ideal for users with a monthly production capacity of 200-300 tonnes.

CHM Machinery serves major paper mills worldwide including Nine Dragons Paper (ND), Double A, SUN Paper and other industry leaders. Our equipment holds significant market share in Bangladesh (80%), China (70%), Vietnam (70%), and Ethiopia (70%).

Technical Parameters

Parameter	Details
Model	CHM-A4-2
Production Speed	Max 0-250 m/min (depends on paper quality)
Max Numbers of Cutting	Max 841 cuts/min
Output of the Ream	Max 13 reams/min
Cutting Accuracy	±0.2 mm
Main Power Supply	3*380 V / 50 Hz
Power	23 KW
Air Consumption	200 NL/min

System Components

Unwind Stand

Automatic Tension Control System

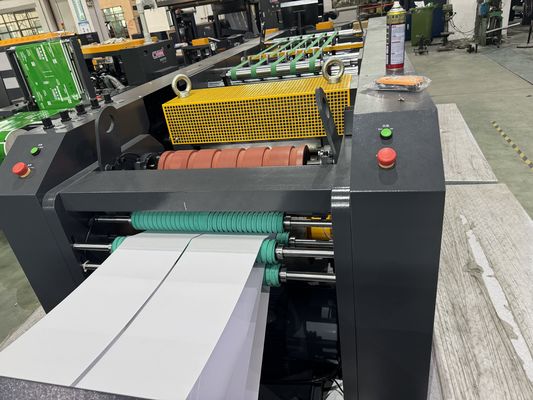

High Precision Cutting Knife System

Transporting System

Paper Collecting System

CHM-A4B Wrapping Machine

Parameter	Details
Model	CHM-A4B
Paper Width	Gross width: 310 mm; Net width: 297 mm
Design Speed	Max 40 reams/min
Operation Speed	Max 35 reams/min
Power	18 KW

Control System

All machines are controlled by PLC, including speed control, paper count, paper ream output, fault alarm and automatic stop with fault codes displayed on the panel screen.

Finished Products

Company Profile

CHM Machinery specializes in manufacturing paper sheeter machines and A4 production lines with three factories in Guangdong, Shandong and Jiangsu covering nearly 140,000 square meters. We've grown to become the world's second largest sheeting machine manufacturer with independent production capacity.

Our professional after-sales team and R&D department support our global customer base across more than 100 countries. The 2006 single knife sheeter model continues to serve customers worldwide, with annual sales exceeding 200 units.

Contact Information

Website: www.chmsheeter.com

Email: chm017@szchm.com

WhatsApp/WeChat: 86-13215242947 (Ms. Ada)

Frequently Asked Questions

What advantages do your A4 production lines have?

We have advanced R&D capabilities and high-speed cutting technology. Our machines operate 24 hours per day with maximum production capacity of 1600 tons, holding 70% of the market share.

Do you have any installation cases?

Many paper mills use our equipment, including ND Paper (Pakistan), Double A, Sun Paper, and Industry. We can provide videos of machines operating in your country.

Why choose CHM Machinery over other suppliers?

CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years of experience since 2004, we have customers who have used our equipment for more than a decade, supported by engineers with 15+ years of experience.

How do you guarantee quality?

We always provide pre-production samples before mass production and conduct final inspections before shipment.

What kind of service support do you offer?

All parts are guaranteed for one year, with CHM Machinery providing lifetime maintenance. Outside the warranty period, we offer spare parts and services at preferential prices with prompt response times.
