A4 Paper Cutting And Packaging Machine High Speed Output 20/25/35 Reams Per Minutes A4 Making Machine

Name: A4 Paper Cutting And Packaging Machine High Speed Output 20/25/35 Reams Per Minutes A4 Making Machine
Brand: Dongguan Chun Hing Mechanical Technology Co., Ltd.
SKU: CHM-A4-4/5
Price: 275,000.00 USD
Availability: InStock

Brand Name:	CHM Machinery
Model Number:	CHM-A4-4/5
MOQ:	1 set
Price:	250000-300000
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200 sets

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Production Speed:

Max280m/min

Cutting Accuracy:

±0.2mm

Power:

32kw+18kw+18kw

Machine Type:

2 Rolls Loaded Unwind Stand *2sets Plus 1 Roll Loaded Unwind Stand *1 Set (shaftless And Hydraulic Floor Pickup System)

Diameter Of The Paper Roll:

Max.Ф1500mm

Paper Rack’s Material:

Steel

Clutch Device:

Pneumatic Braker And Control

Clip Arm’s Adjustment:

Manual Adjust By Oil Pressure

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

A4 paper cutting machine high speed

A4 Paper Cutting And Packaging Machine

A4 Making Machine

Product Description

CHM-A4 High-Speed Copy Paper Sheeting & Packaging Machine

CHM-A4 Copy Paper Sheeting and Packaging A4 Making Machine - A4 Copy Paper 4 Pockets With 5 Rolls A4 Paper Cutting and Packing Machine Production Line

Product Overview

The CHM-A4-4/5 high-speed production line delivers output of 20/25/35 reams per minute, capable of processing 20/25/30 tonnes in 8 hours. CHM Machinery manufactured China's first high double rotary A4 copy production line in 2006, with 19 years of continuous research, development, and technological advancements.

Our A4 production lines are trusted by major paper manufacturers worldwide including Nine Dragons Paper (ND), Double A, and SUN Paper. Market penetration includes 80% in Bangladesh, 70% in China, 70% in Vietnam, and 70% in Ethiopia.

This specialized A4 copy paper sheeter production line efficiently cuts A4 copy paper and is suitable for general A4 paper, A3 paper, and art paper. Featuring advanced cutting technology and optimized cutting modes, it provides rapid, precise cutting to specified dimensions with simple operation and high precision. Custom sizes available including American size and test paper size.

Technical Specifications

General Specifications

Attribute	Value
Production Speed	Max 280 m/min
Cutting Accuracy	±0.2 mm
Power	32 kW + 18 kW + 18 kW
Machine Type	2 rolls loaded unwind stand 2 sets plus 1 roll loaded unwind stand 1 set (shaftless and hydraulic floor pickup system)
Diameter of Paper Roll	Max. Ф1500 mm
Paper Rack Material	Steel
Clutch Device	Pneumatic braker and control
Clip Arm Adjustment	Manual adjust by oil pressure

Model Comparison

CHM Type	CHM-A4-4	CHM-A4-5
Paper Width	845-850 mm	1055-1060 mm
Production Speed	Max 280 m/min	Max 280 m/min
Cutting Accuracy	±0.2 mm	±0.2 mm
Number of Paper Rolls	4 Rolls	5 Rolls
Pockets	4 Pockets	5 Pockets
Output of the Ream	Max 30 Reams/min	Max 37 Reams/min
Power	32 kW + 18 kW + 18 kW	34 kW + 18 kW + 18 kW
Dimension (L * W * H)	17681 mm * 4140 mm * 3190 mm	20114 mm * 4355 mm * 3190 mm

Advanced Systems

Automatic Tension Control System

When paper passes through the inductor, it automatically feeds back to the PLC control system to adjust brake load, increasing or reducing tension to automatically control paper tension.

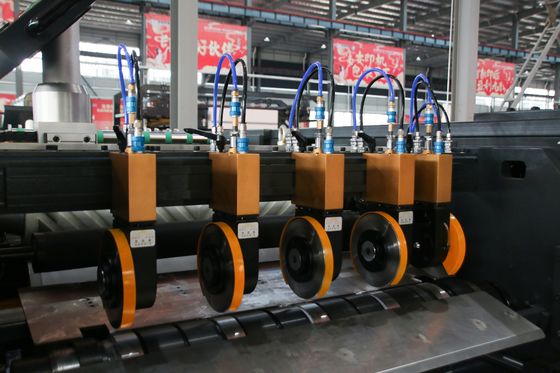

High Precision Cutting Knife System

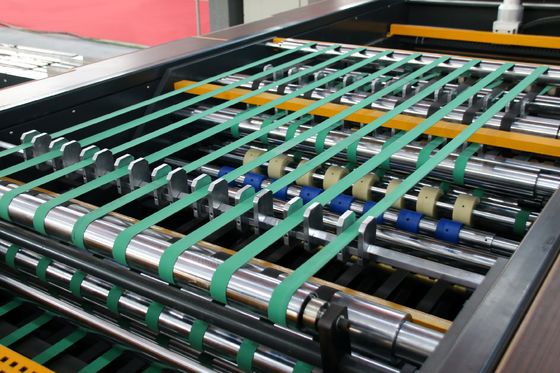

Transporting System

Paper Collecting System

Wrapping Machine Specifications

Specification	Details
Model	CHM-A4B
Paper Width	Gross width: 310 mm; Net width: 297 mm
Ream Packing Height	Max: 55 mm; Min: 45 mm
Packing Roll Diameter	Max: 1000 mm; Min: 200 mm
Packing Roll Width	560 mm
Packing Sheets Weight	70-100 g/m²
Design Speed	Max: 50 reams/min
Operation Speed	Max: 35 reams/min
Power	18 KW

Control System

All machines are controlled by PLC with comprehensive functions including speed control, paper count, ream output tracking, fault alarm with automatic stop, and fault code display on panel screen.

Finished Products

Company Introduction

CHM Machinery is a direct manufacturer specializing in paper sheeter machines and A4 production lines with 2 series. Established in 2004, we developed China's first paper roll to sheet cutting machine and A4 production line. After 21 years of dedicated development, we have grown into a professional paper sheeter machine manufacturer with three factories.

Our three factories in Guangdong, Shandong and Jiangsu cover nearly 140,000 square meters, making us the world's second largest sheeting machine manufacturer with independent production capacity. We maintain the most professional after-sales team and research & development department. Since 2006, our single knife sheeters have been processing paper rolls, with annual sales exceeding 200 units to more than 100 countries worldwide.

We have numerous successful installation cases globally and can verify if your country already uses our equipment. Please share your detailed requirements including paper type, gram weight, width, and capacity - we'll recommend the most suitable paper roll sheet cutting model.

Reach out to us! Share your requirements and we'll craft a tailor-made optimal solution just for you!

https://www.chmsheeter.com
Email: chm017@szchm.com
WhatsApp/WeChat: 86-13215242947 (Ms. Ada)

Frequently Asked Questions

What advantages do your A4 production lines have?

We have strong R&D capabilities and high-speed cutting technology. Our machines operate 24 hours daily with maximum production capacity of 1600 tons, holding 70% market share.

Do you have any installation cases?

Many paper mills use our equipment including ND Paper (Pakistan), Double A, Sun Paper. We can provide machine videos from your country.

Why choose CHM Machinery instead of other suppliers?

CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years of experience since 2004, we have long-term customers and engineers with 15+ years experience.

How do you guarantee quality?

We conduct pre-production samples before mass production and final inspection before shipment.

What kind of after-sales service do you offer?

All parts are guaranteed for one year with lifetime maintenance. Outside warranty, we provide spare parts and services at preferential prices.
