Single Rotary Paper Sheeting Machine Paper Cutting CHM Sheeter Machine

Name: Single Rotary Paper Sheeting Machine Paper Cutting CHM Sheeter Machine
Brand: Dongguan Chun Hing Mechanical Technology Co., Ltd.
SKU: CHM-1100/1400/1700/1900
Price: 90,000.00 USD
Availability: InStock

Brand Name:	CHM Machinery
Model Number:	CHM-1100/1400/1700/1900
MOQ:	1
Price:	60000-120000 USD
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Total Power:

22kW

Power Supply:

AC380V 50Hz

Dimensions:

6000mm X 2500mm X 1800mm

Maximum Cutting Width:

1100mm

Cutting Accuracy:

±0.5mm

Maximum Cutting Speed:

300m/min

Control System:

PLC Servo

Packaging Details:

Film, shipping mark, bubble wrap

Highlight:

single rotary paper sheeting machine

paper cutting CHM machine

rotary paper cutting machine

Product Description

Single Rotary Paper Sheeting Machine Paper Cutting CHM Machine

Product Overview

CHM-1100/1400/1700/1900 Precision High Speed Single Rotary Knife Paper Sheeter Machine

Machine Configuration

Unwind Stand: Automatic tension system with multi-point automatic braking
Auto-EPC (Edge Paper Control)
Deculler System (Anti-curvature Device)
Middle Slitting and Waste Edge Collecting System
High precision single rotary sheet cutter
Paper Conveyer System
Electrostatic eliminator System
Auto-Squareness Adjustment System
Auto counting and Label inserting device
Auto Jogger System

Technical Description

CHM Machinery specializes in computerized high-precision single rotary sheeters designed for paper mills, paper distributors, and printing houses. This advanced equipment enhances slitting capacity while ensuring superior quality output. The single-drum sheeter employs a "Top blade rotary, bottom blade fixed" flying shear design, where the lower blade remains stationary during paper transport while the upper blade rotates continuously at high speed. The AC servo-driven control system ensures accurate and stable operation. This machine handles paper weights from 60 to 550 gsm and can process thin paper as light as 30 grams, with the capability to cut 8-12 rolls simultaneously at speeds up to 100 cuts per minute.

Technical Specifications

CHM Type	CHM-1400	CHM-1700	CHM-1900
Cutting Way	Top blade rotary, bottom blade fixed	Top blade rotary, bottom blade fixed	Top blade rotary, bottom blade fixed
Paper Weight Range	60-550 GSM	60-550 GSM	60-550 GSM
Cutting Accuracy	±0.5mm	±0.5mm	±0.5mm
Max Cutting Speed	300 sheets/min	300 sheets/min	300 sheets/min
Max Cutting Meter Speed	300m/min	300m/min	300m/min
Cutting Length Range	450-1650mm	450-1650mm	450-1650mm
Max Scroll Diameter	1800mm	1800mm	1800mm
Stacking Height	1500mm (59")	1500mm (59")	1500mm (59")
Max Paper-Cutting Width	1400mm	1700mm	1900mm
Weight	12000kg	13000kg	14000kg
Dimension (LxWxH)	12518mm3853mm2230mm	12518mm4153mm2230mm	12518mm4353mm2230mm

Machine Components & Operation

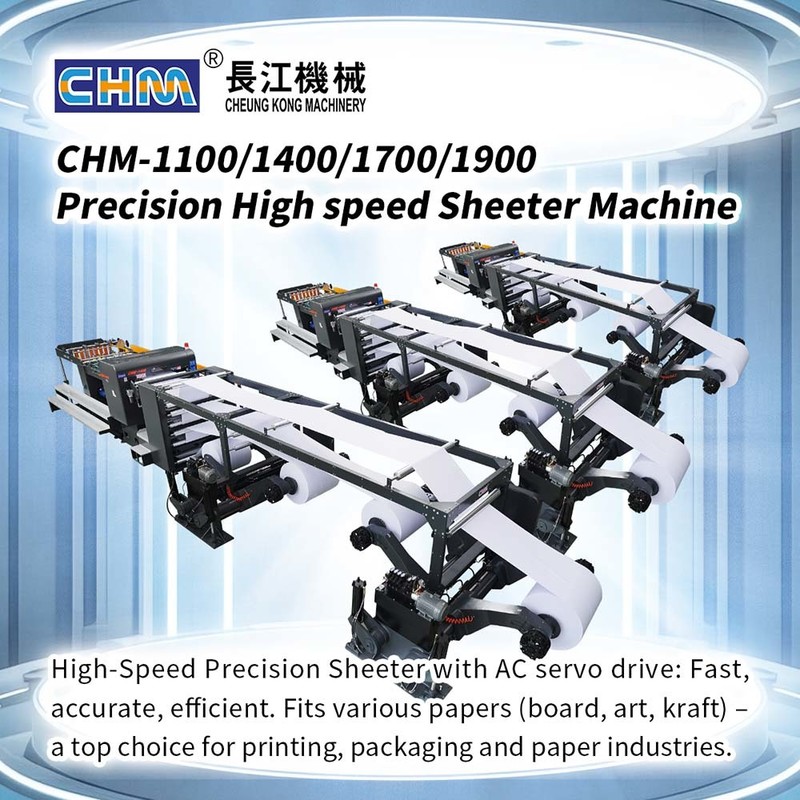

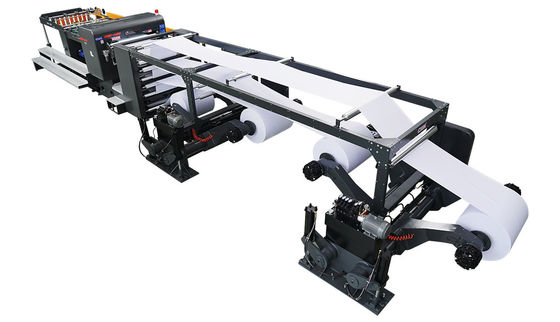

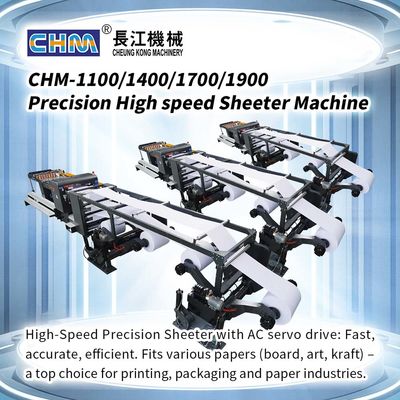

CHM Series Paper Sheeter Overview

Paper Sheeter in Operation

Close-up of Cutting Mechanism

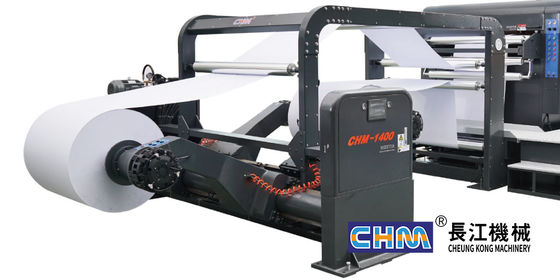

Hydraulic Shaft-less Unwind Station

Multi-disc Brake System

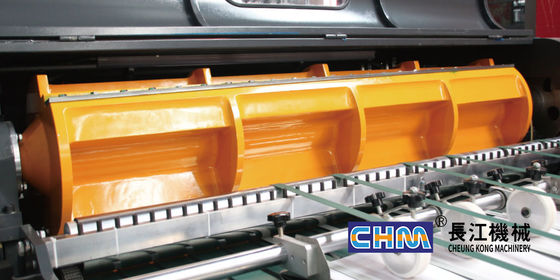

High Precision Single Rotary Sheet Cutter

Conveyor Unit

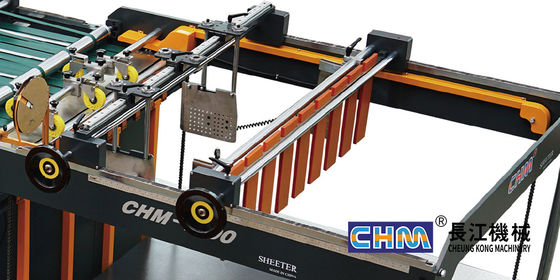

Auto Jogger System

Middle Slitting and Waste Edge Collecting System

Frequently Asked Questions

Our Cooperative Partners

Paper mills: Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, C&C JOINT PRINTING CO. (HK) LTD, etc.

What kind of quality service do you offer?

All parts are guaranteed for one year. CHM Machinery provides lifetime maintenance support. Outside the warranty period, we offer spare parts and services at preferential prices with prompt delivery.

How do we guarantee quality?

We conduct pre-production samples before mass production and perform final inspections before shipment.

What products can you buy from us?

Paper sheeter machines, paper cutters, sheet machines, copy paper and packaging machines, cut-to-size paper and packaging machines.

Why choose CHM Machinery over other suppliers?

CHM is the only Hong Kong brand sheet machinery producer in China, operating from the world's second largest facility spanning nearly 140,000 square meters. As sheet solution experts, we maintain the best R&D team and hold over 110 patents.

Who are we?

Our headquarters is located in Guangdong, China, established in 2010. We serve markets worldwide including East Asia (10.00%), Africa (5.00%), South America (5.00%), Domestic Market (3.00%), Northern Europe (3.00%), Eastern Europe (2.00%), South Asia (2.00%), Southern Europe (2.00%), Southeast Asia (2.00%), Central America (2.00%), Western Europe (2.00%), North America (2.00%), Middle East (2.00%), and Oceania (2.00%). Our organization employs approximately 101-200 people.

CHM Machinery Operations

Manufacturing Process

Quality Control Standards
