CHM Machine A4 Copy Paper Sheeter And Packing Machine High Output 30 Tons Per Day With Max 280m/min Speed

Name: CHM Machine A4 Copy Paper Sheeter And Packing Machine High Output 30 Tons Per Day With Max 280m/min Speed
Brand: Dongguan Chun Hing Mechanical Technology Co., Ltd.
SKU: CHM-A4-4/5
Price: 275,000.00 USD
Availability: InStock

Brand Name:	CHM Machinery
Model Number:	CHM-A4-4/5
MOQ:	1 set
Price:	250000-300000
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200 sets

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Production Speed:

Max280m/min

Cutting Accuracy:

±0.2mm

Power:

32kw+18kw+18kw

Machine Type:

2 Rolls Loaded Unwind Stand *2sets Plus 1 Roll Loaded Unwind Stand *1 Set (shaftless And Hydraulic Floor Pickup System)

Diameter Of The Paper Roll:

Max.Ф1500mm

Paper Rack’s Material:

Steel

Clutch Device:

Pneumatic Braker And Control

Clip Arm’s Adjustment:

Manual Adjust By Oil Pressure

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

A4 sheeter machine high output

A4 sheeter packing machine 30 tons

A4 sheeter with 280m/min speed

Product Description

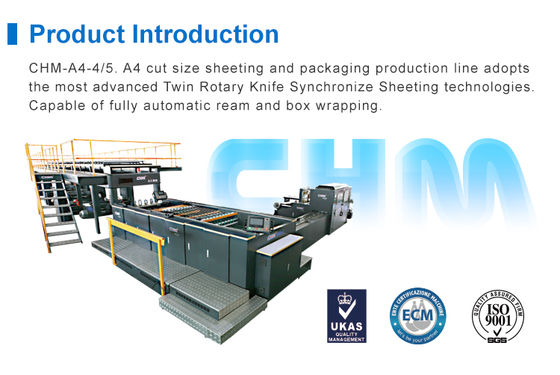

CHM-A4 Copy Paper Sheeting and Packaging Machine

High-speed A4 paper production line with maximum output of 30 tons per day and speeds up to 280m/min

Product Overview

The CHM-A4-4/5 high-speed production line delivers 20/25/35 reams per minute, achieving 20/25/30 tonnes in 8 hours. As the original manufacturer of the first high double rotary A4 copy production line, CHM Machinery brings 19 years of continuous research and development to this fully automated equipment.

This integrated system combines electrical automation, PLC control, and mechanical automation into a complete packaging production line for continuous operation including ream collection, pulling, memory conveying, packaging, and discharge.

Technical Specifications

Production Speed	Max 280m/min
Cutting Accuracy	±0.2mm
Power Consumption	32kw + 18kw + 18kw
Machine Type	2 rolls loaded unwind stand 2 sets plus 1 roll loaded unwind stand 1 set (shaftless and hydraulic floor pickup system)
Paper Roll Diameter	Max. Ф1500mm
Paper Rack Material	Steel
Clutch Device	Pneumatic braker and control
Clip Arm Adjustment	Manual adjust by oil pressure

Model Comparison

Parameter	CHM-A4-4	CHM-A4-5
Paper Width	845-850 mm	1055-1060 mm
Production Speed	Max 280 m/min	Max 280 m/min
Cutting Accuracy	±0.2 mm	±0.2 mm
Number of Paper Rolls	4 Rolls	5 Rolls
Pockets	4 Pockets	5 Pockets
Output of the Ream	Max 30 Reams/min	Max 37 Reams/min
Power	32 kW + 18 kW + 18 kW	34 kW + 18 kW + 18 kW
Dimension (L x W x H)	17681 mm × 4140 mm × 3190 mm	20114 mm × 4355 mm × 3190 mm

Advanced Control Systems

Automatic Tension Control System

When paper passes through the inductor, it automatically feeds back to the PLC control system to adjust brake load, increasing or reducing tension to automatically control paper tension.

High Precision Cutting Knife System

Transporting System

Paper Collecting System

Wrapping Machine Specifications

Model	CHM-A4B
Paper Width	Gross width: 310 mm; Net width: 297 mm
Ream Packing Height	Max: 55 mm; Min: 45 mm
Packing Roll Diameter	Max: 1000 mm; Min: 200 mm
Packing Roll Width	560 mm
Packing Sheets Weight	70-100 g/m²
Design Speed	Max: 50 reams/min
Operation Speed	Max: 35 reams/min
Power	18 KW

PLC Control System

All machines are controlled by PLC with comprehensive functions including speed control, paper count, ream output tracking, fault alarm with automatic stop, and fault code display on panel screen.

Finished Products

Company Profile

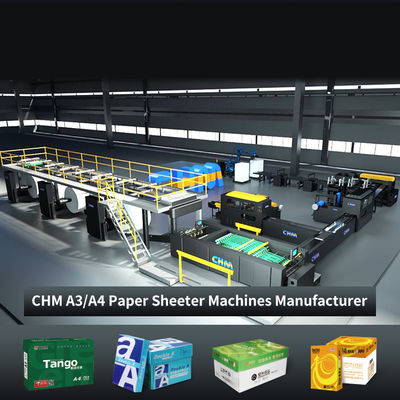

CHM Machinery, established in 2004, specializes in paper sheeter machines and A4 production lines. With three factories in Guangdong, Shandong and Jiangsu covering nearly 140,000 square meters, we have become the world's second largest sheeting machine manufacturer with independent production capacity.

With annual sales exceeding 200 units to over 100 countries worldwide, we offer professional after-sales support and continuous research and development.

Contact Information

Website: https://www.chmsheeter.com

Email: chm017@szchm.com

WhatsApp/WeChat: 86-13215242947 (Ms. Ada)

Frequently Asked Questions

What advantages do your A4 production lines have?

We have strong R&D capabilities and high-speed cutting technology. Our machines operate 24 hours daily with maximum production capacity of 1600 tons, holding 70% market share.

Do you have installation cases in my region?

Many paper mills use our equipment including ND Paper (Pakistan), Double A, Sun Paper. We can provide machine videos from your country.

Why choose CHM Machinery over other suppliers?

CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years of experience since 2004, we have long-term customers and engineers with 15+ years experience.

How do you guarantee quality?

We conduct pre-production samples before mass production and final inspection before shipment.

What kind of after-sales service do you offer?

All parts are guaranteed for one year with lifetime maintenance. Outside warranty, we provide spare parts and services at preferential prices.
