CHM Machine Fully Auto A4 Paper Sheeter And Packing Machine Production Line With Max 280m/min Speed

Brand Name:	CHM Machinery
Model Number:	CHM-A4-4/5
MOQ:	1 set
Price:	250000-300000
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200 sets

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Production Speed:

Max280m/min

Cutting Accuracy:

±0.2mm

Power:

32kw+18kw+18kw

Machine Type:

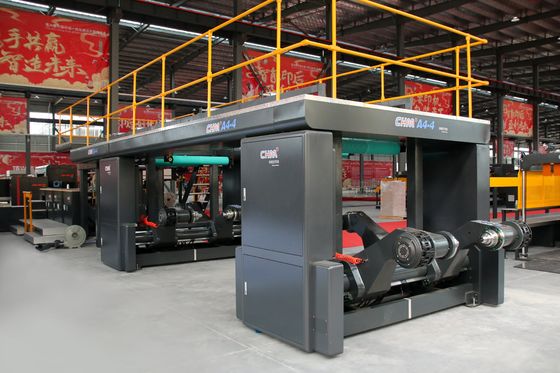

2 Rolls Loaded Unwind Stand *2sets Plus 1 Roll Loaded Unwind Stand *1 Set (shaftless And Hydraulic Floor Pickup System)

Diameter Of The Paper Roll:

Max.Ф1500mm

Paper Rack’s Material:

Steel

Clutch Device:

Pneumatic Braker And Control

Clip Arm’s Adjustment:

Manual Adjust By Oil Pressure

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

fully auto A4 paper sheeter machine

A4 sheeter packing machine

A4 paper production line

Product Description

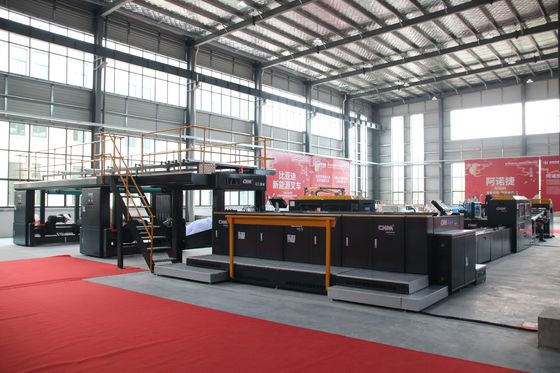

CHM-A4 Fully Automatic Paper Sheeting and Packaging Production Line

The CHM-A4 high-speed production line delivers exceptional output of 20-35 reams per minute, capable of processing 20-30 tonnes in 8 hours. This fully automated system integrates electrical automation, PLC control, and mechanical automation for continuous production from ream collection to final discharge.

Key Specifications

Attribute	Value
Production Speed	Max 280 m/min
Cutting Accuracy	±0.2 mm
Power Consumption	32 kW + 18 kW + 18 kW
Paper Roll Capacity	2 rolls loaded unwind stand * 2 sets plus 1 roll loaded unwind stand * 1 set
Max Paper Roll Diameter	Ф1500 mm

Technical Parameters

Model	CHM-A4-4	CHM-A4-5
Paper Width	845-850 mm	1055-1060 mm
Production Speed	Max 280 m/min	Max 280 m/min
Cutting Accuracy	±0.2 mm	±0.2 mm
Number of Paper Rolls	4 Rolls	5 Rolls
Pockets	4 Pockets	5 Pockets
Output Capacity	Max 30 Reams/min	Max 37 Reams/min
Power Requirements	32 kW + 18 kW + 18 kW	34 kW + 18 kW + 18 kW
Dimensions (LWH)	17681 * 4140 * 3190 mm	20114 * 4355 * 3190 mm

Advanced Control Systems

Automatic Tension Control System

When paper passes through the inductor, it automatically feeds back to the PLC control system to adjust brake load, maintaining optimal paper tension throughout production.

High Precision Cutting Knife System

Transporting System

Paper Collecting System

Wrapping Machine Specifications

Specification	Details
Model	CHM-A4B
Paper Width	Gross: 310 mm; Net: 297 mm
Ream Packing Height	Max: 55 mm; Min: 45 mm
Packing Roll Diameter	Max: 1000 mm; Min: 200 mm
Packing Roll Width	560 mm
Packing Sheets Weight	70-100 g/m²
Design Speed	Max: 50 reams/min
Operation Speed	Max: 35 reams/min
Power	18 kW

PLC Control System

All machines are controlled by PLC with comprehensive functions including speed control, paper count, ream output tracking, fault alarm with automatic stop, and fault code display on panel screen.

Finished Products

Company Profile

CHM Machinery specializes in paper sheeter machines and A4 production lines, with manufacturing facilities established since 2004. With over 21 years of expertise, we operate three factories across Guangdong, Shandong, and Jiangsu provinces, covering nearly 140,000 square meters.

As the world's second largest sheeting machine manufacturer with independent production capacity, we maintain a professional R&D team and annual sales exceeding 200 units to over 100 countries worldwide.

Contact Information

Website: https://www.chmsheeter.com

Email: chm017@szchm.com

WhatsApp/WeChat: 86-13215242947 (Ms. Ada)

Share your detailed requirements for paper type, gram weight, width, and capacity, and we'll provide the most suitable paper roll sheet cutting model for your needs.

Frequently Asked Questions

What advantages do your A4 production lines have?

We offer strong R&D capabilities and high-speed cutting technology. Our machines operate 24 hours daily with maximum production capacity of 1600 tons, holding 70% market share.

Do you have installation cases?

Many paper mills use our equipment including ND Paper (Pakistan), Double A, and Sun Paper. We can provide machine videos from your country.

Why choose CHM Machinery over other suppliers?

CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years of experience since 2004, we maintain long-term customers and engineers with 15+ years experience.

How do you guarantee quality?

We conduct pre-production samples before mass production and final inspection before shipment.

What kind of service support do you offer?

All parts are guaranteed for one year with lifetime maintenance. Outside warranty, we provide spare parts and services at preferential prices.
