CHM A4 Copy Paper 5 Rolls 5 Pockts Cutting And Packaging Machine A4 Making Machine

Name: CHM A4 Copy Paper 5 Rolls 5 Pockts Cutting And Packaging Machine A4 Making Machine
Brand: Dongguan Chun Hing Mechanical Technology Co., Ltd.
SKU: CHM-A4-4/5
Price: 275,000.00 USD
Availability: InStock

Brand Name:	CHM Machinery
Model Number:	CHM-A4-4/5
MOQ:	1 set
Price:	250000-300000
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200 sets

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Production Speed:

Max280m/min

Cutting Accuracy:

±0.2mm

Power:

32kw+18kw+18kw

Machine Type:

2 Rolls Loaded Unwind Stand *2sets Plus 1 Roll Loaded Unwind Stand *1 Set (shaftless And Hydraulic Floor Pickup System)

Diameter Of The Paper Roll:

Max.Ф1500mm

Paper Rack’s Material:

Steel

Clutch Device:

Pneumatic Braker And Control

Clip Arm’s Adjustment:

Manual Adjust By Oil Pressure

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

A4 paper cutting machine

A4 packaging machine 5 rolls

A4 sheeter making machine

Product Description

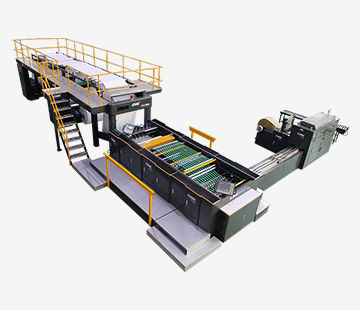

CHM A4 Paper Cutting and Packaging Machine

High-speed A4 making machine with 5 rolls cutting and packaging capability for efficient copy paper production.

Product Overview

The CHM-A4-4/5 high-speed production line delivers output of 20-35 reams per minute, capable of processing 20-30 tonnes in 8 hours. As the first high double rotary A4 copy production line manufactured by CHM Machinery, this system represents 19 years of continuous research, development, and technological advancement.

Trusted by major paper manufacturers including Nine Dragons Paper (ND), Double A, and SUN Paper, our A4 production lines hold significant market shares: Bangladesh 80%, China 70%, Vietnam 70%, and Ethiopia 70%.

Technical Specifications

Attribute	Value
Production Speed	Max 280 m/min
Cutting Accuracy	±0.2 mm
Power Consumption	32kW + 18kW + 18kW

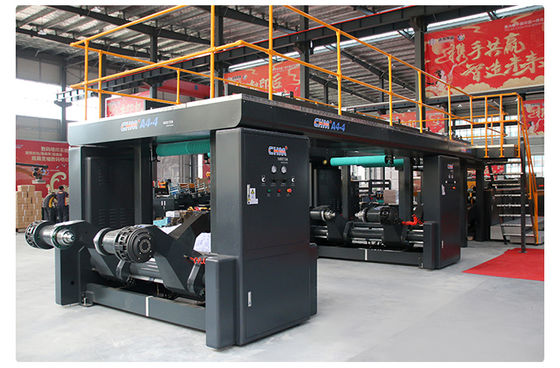

Machine Type	2 rolls loaded unwind stand * 2 sets plus 1 roll loaded unwind stand * 1 set (shaftless and hydraulic floor pickup system)
Paper Roll Diameter	Max. Ø1500 mm
Paper Rack Material	Steel

Model Comparison

Parameter	CHM-A4-4	CHM-A4-5
Paper Width	845-850 mm	1055-1060 mm
Production Speed	Max 280 m/min	Max 280 m/min
Cutting Accuracy	±0.2 mm	±0.2 mm
Number of Paper Rolls	4 Rolls	5 Rolls
Pockets	4 Pockets	5 Pockets
Output	Max 30 Reams/min	Max 37 Reams/min
Power	32 kW + 18 kW + 18 kW	34 kW + 18 kW + 18 kW
Dimensions (LWH)	17681 * 4140 * 3190 mm	20114 * 4355 * 3190 mm

Key System Components

Automatic Tension Control System

When paper passes through the inductor, it automatically feeds back to the PLC control system to adjust brake load, increasing or reducing tension for precise paper tension control.

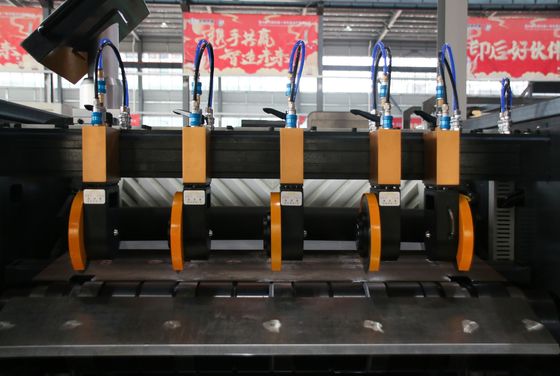

High Precision Cutting Knife System

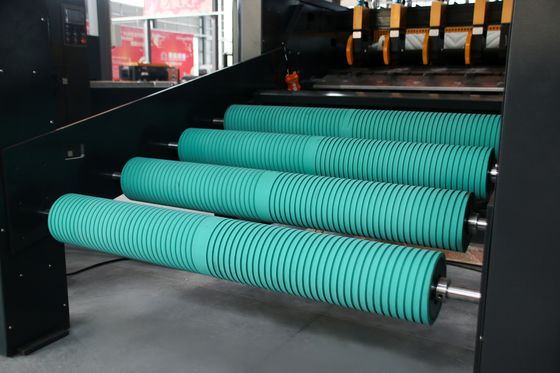

Transporting System

Paper Collecting System

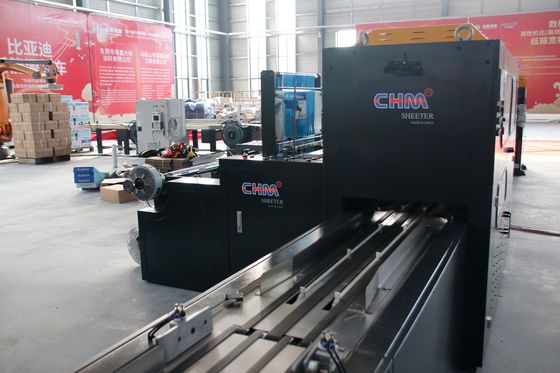

Wrapping Machine Specifications

Specification	Details
Model	CHM-A4B
Paper Width	Gross: 310 mm; Net: 297 mm
Ream Packing Height	Max: 55 mm; Min: 45 mm
Packing Roll Diameter	Max: 1000 mm; Min: 200 mm
Packing Roll Width	560 mm
Packing Sheets Weight	70-100 g/m²
Design Speed	Max: 50 reams/min
Operation Speed	Max: 35 reams/min
Power	18 KW

Control System

All machines are controlled by PLC with comprehensive functions including speed control, paper count, ream output tracking, fault alarm with automatic stop, and fault code display on panel screen.

Finished Products

Company Introduction

CHM Machinery, established in 2004, is a professional manufacturer specializing in paper sheeter machines and A4 production lines. With three factories in Guangdong, Shandong, and Jiangsu covering nearly 140,000 square meters, we have become the world's second largest sheeting machine manufacturer with independent production capacity.

We developed China's first paper rolls to sheet cutting machine and A4 production line. With over 21 years of experience, we maintain a professional after-sales team and R&D department, selling more than 200 units annually to over 100 countries worldwide.

Share your detailed requirements including paper type, gram weight, width, and capacity. We'll design the most suitable paper roll sheet cutting model for your specific needs.

www.chmsheeter.com
Email: chm017@szchm.com
WhatsApp/WeChat: 86-13215242947 (Ms. Ada)

Frequently Asked Questions

What advantages do your A4 production lines have?

We have strong R&D capabilities and high-speed cutting technology. Our machines operate 24 hours daily with maximum production capacity of 1600 tons, holding 70% market share.

Do you have installation cases in my country?

Many paper mills use our equipment including ND Paper (Pakistan), Double A, and Sun Paper. We can provide machine videos from your specific country.

Why choose CHM Machinery over other suppliers?

CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years of experience since 2004, we have long-term customers and engineers with 15+ years experience.

How do you guarantee quality?

We conduct pre-production samples before mass production and final inspection before shipment.

What kind of after-sales service do you offer?

All parts are guaranteed for one year with lifetime maintenance. Outside warranty, we provide spare parts and services at preferential prices.
