| Brand Name: | CHM Machinery |
| Model Number: | CHM-A4-4/5 |
| MOQ: | 1 set |
| Price: | 250000-300000 |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |

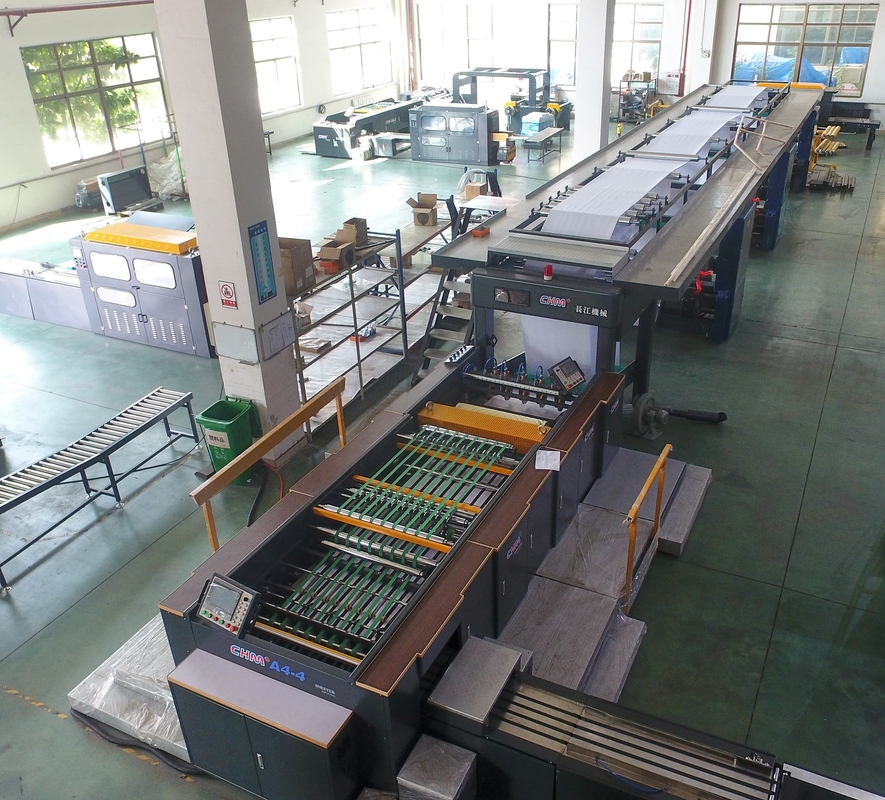

CHM-A4-4/5 high-speed production line with output of 20/25/35 reams per minute, capable of 20/25/30 tonnes in 8 hours. This A4 copy paper sheeter production line is specifically designed for efficient cutting of A4 copy paper, suitable for general A4 paper, A3 paper, and art paper. Featuring advanced cutting technology and optimized cutting modes, it delivers rapid, precise cutting to specified dimensions. The equipment boasts simple structure, easy operation, and high cutting precision. Custom sizes available including American size and test paper size.
| Attribute | Value |
|---|---|
| Production speed | Max 280m/min |
| Cutting accuracy | ±0.2mm |
| Power | 32kw+18kw+18kw |
| Machine Type | 2 rolls loaded unwind stand *2sets plus 1 roll loaded unwind stand *1 set (shaftless and hydraulic floor pickup system) |
| Diameter of the paper roll | Max.Ф1500mm |
| Paper rack's material | Steel |
| Clutch device | Pneumatic braker and control |
| Clip arm's adjustment | Manual adjust by oil pressure |
| CHM Type | CHM-A4-4 | CHM-A4-5 |
|---|---|---|
| Paper Width | 845-850 mm | 1055-1060 mm |
| Production Speed | Max 280 m/min | Max 280 m/min |
| Cutting Accuracy | ±0.2 mm | ±0.2 mm |
| Number of Paper Rolls | 4 Rolls | 5 Rolls |
| Pockets | 4 Pockets | 5 Pockets |
| Output of the Ream | Max 30 Reams/min | Max 37 Reams/min |
| Power | 32 kW + 18 kW + 18 kW | 34 kW + 18 kW + 18 kW |
| Dimension (L x W x H) | 17681 mm × 4140 mm × 3190 mm | 20114 mm × 4355 mm × 3190 mm |
When paper passes through the inductor, it automatically feeds back to the PLC control system to adjust brake load, increasing or reducing tension to automatically control paper tension.
| Specification | Details |
|---|---|
| Model | CHM-A4B |
| Paper Width | Gross width: 310 mm; Net width: 297 mm |
| Ream Packing Height | Max: 55 mm; Min: 45 mm |
| Packing Roll Diameter | Max: 1000 mm; Min: 200 mm |
| Packing Roll Width | 560 mm |
| Packing Sheets Weight | 70-100 g/m² |
| Design Speed | Max: 50 reams/min |
| Operation Speed | Max: 35 reams/min |
| Power | 18 KW |
All machines are controlled by PLC with comprehensive functions including speed control, paper count, ream output tracking, fault alarm with automatic stop, and fault code display on panel screen.
We have strong R&D capabilities and high-speed cutting technology. Our machines operate 24 hours daily with maximum production capacity of 1600 tons, holding 70% market share.
Many paper mills use our equipment including ND Paper (Pakistan), Double A, Sun Paper. We can provide machine videos from your country.
CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years of experience since 2004, we have long-term customers and engineers with 15+ years experience.
We conduct pre-production samples before mass production and final inspection before shipment.
All parts are guaranteed for one year with lifetime maintenance. Outside warranty, we provide spare parts and services at preferential prices.
