| Brand Name: | CHM Machinery |
| Model Number: | CHM-A4-2 |
| MOQ: | 1 set |
| Price: | 165000-250000 |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |

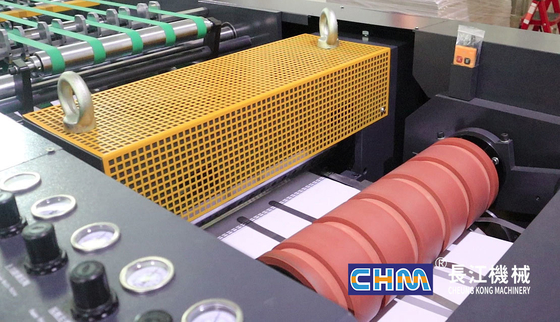

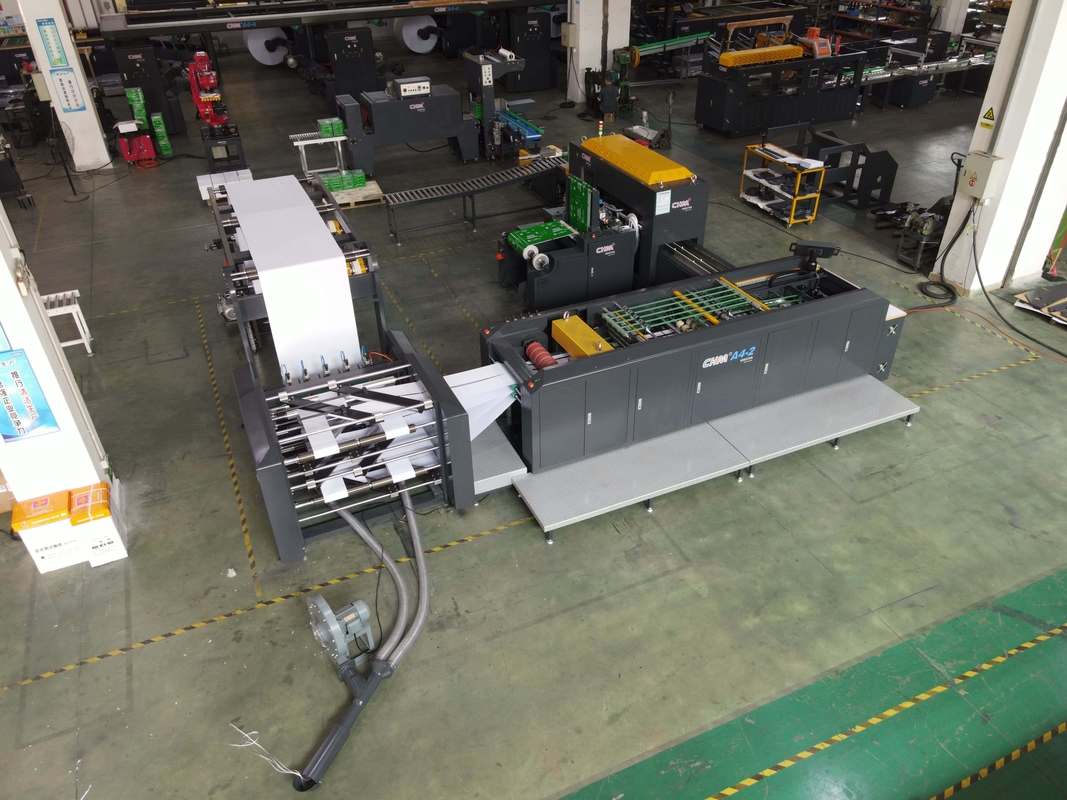

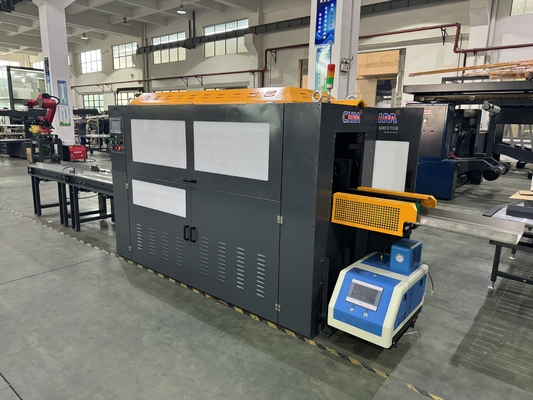

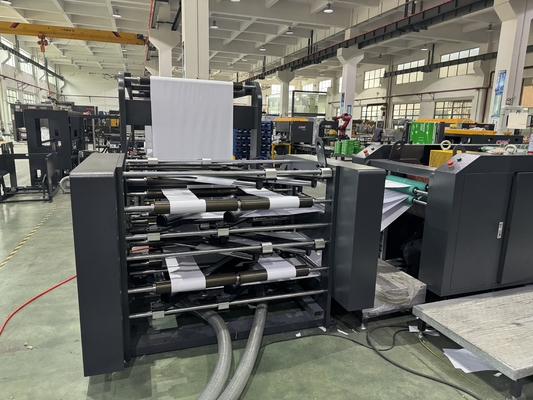

CHM-A4-2/A4B: A compact, space-saving, high-efficiency A4 copy paper sheeting and packaging production line featuring advanced Twin Rotary Knife Synchronize Sheeting technology with fully automatic ream and box wrapping capabilities.
| Paper Width | Gross width 850 mm, net width 840mm |
| Cutting Numbers | 2 cutting-A4 210mm (width) |
| Paper Roll's Diameter | Max.Ф1400mm. Min.Ф600mm |
| Paper Core's Diameter | 3"(76.2mm) or according to client requirements |
| Paper Grade | High-grade copy paper, office paper, Free Wood paper |
| Paper Weight | 60-100g/m² |
| Sheet Length | 297mm (specially designed for A4 paper) |
| Ream Amount | 500 sheets Max. Height: 45-55mm |
| Parameter | Details |
|---|---|
| Model | CHM-A4-2 |
| Production Speed | Max 0-250 m/min (depends on paper quality) |
| Max Cutting Numbers | 841 cuts/min |
| Output Capacity | Max 13 reams/min |
| Cutting Accuracy | ±0.2 mm |
| Power Supply | 3*380 V / 50 Hz |
| Power Consumption | 23 KW |
| Air Consumption | 200 NL/min at 6 bar |
| Safety Standard | Designed according to China's safety standards |
| Parameter | Details |
|---|---|
| Model | CHM-A4B |
| Design Speed | Max 40 reams/min |
| Operation Speed | Max 35 reams/min |
| Power Supply | 3*380 V / 50 Hz |
| Power Consumption | 18 KW |
| Air Consumption | 300 NL/min at 6 bar |
The entire machine is controlled by PLC with functions including speed control, paper count, ream output tracking, fault alarm, and automatic stop with fault code display on the panel screen.
Established in 2004, CHM Machinery has grown into a professional paper sheeter machine manufacturer with three factories in Guangdong, Shandong, and Jiangsu covering 140,000 square meters. As the world's second largest sheeting machine manufacturer with independent production capacity, we have:
Our production line features proprietary R&D capabilities and high-speed cutting technology, capable of 24/7 operation with maximum capacity of 1600 tons. We hold 70% market share in this sector.
We have numerous successful installations worldwide including ND Paper (Pakistan), Double A, Sun Paper, and other major industry players. We can provide video documentation of machines operating in your region.
We conduct pre-production samples before mass production and final inspections before shipment. All components are guaranteed for one year with lifetime maintenance support.
