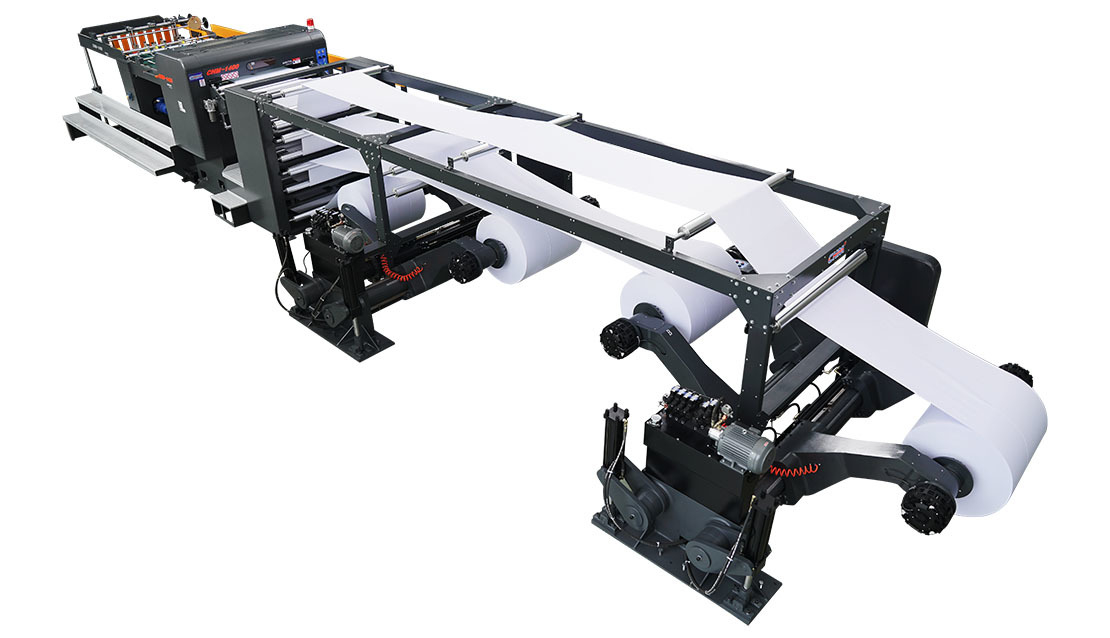

Automatic Single Rotary Knife Sheeter Cutting Paper Roll To Sheets Cutting Machine
CHM Machinery's main products is a computerized high-precision single rotray sheeter, designed specifically for paper mills, paper distributors, and printing houses. It improves slitting capacity and ensures quality. This single-drum sheeter features a "Top blade rotary, bottom blade fixed" flying shear design. During paper transport, the lower blade remains stationary while the upper blade rotates continuously at high speed. This machine handles paper sizes from 60 to 550 gsm.
From single to 12 rolls, it can slit 30g Bible paper, copy paper, 40g silicone paper, and offset paper up to 500gsm thick paper, providing stable and faster speeds.
A servo-driven high speed, high precision and high efficiency sheeter. Capable on wide range of paper, board paper, art paper, kraft paper, etc... Widely used by printing, packaging and paper suppliers.
| CHM Type | CHM-1400 | CHM-1700 | CHM-1900 |
|---|---|---|---|
| Cutting Way | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed | Top blade rotary, bottom blade fixed |
| Refence weight of cutting paper | 60-550GSM | 60-550GSM | 60-550GSM |
| Cutting accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max cutting speed | 300sheets/min | 300sheets/min | 300sheets/min |
| Max.cutting meter speed | 300m/min | 300m/min | 300m/min |
| Cutting length range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max scroll diameter | 1800mm | 1800mm | 1800mm |
| Stacking height Of paperboard | 1500mm(59") | 1500mm(59") | 1500mm(59") |
| Max.paper-cutting width | 1400mm | 1700mm | 1900mm |
| Weight | 12000kg | 13000kg | 14000kg |
| Dimension(LxWxH) | 12518mm*3853mm*2230mm | 12518mm*4153mm*2230mm | 12518mm*4353mm*2230mm |
1)Style
Adjustable slitting knife and exhaust tube for waste edge on both sides.
2)Top slitter
Adjustable up or down, slitting width can be adjusted by manual.
3)Bottom slitter
The slitter are fixed, slitting width can be adjusted by manual.
4)Windmill: driven motor
5)Type-Y collecting pipe for waste edge.

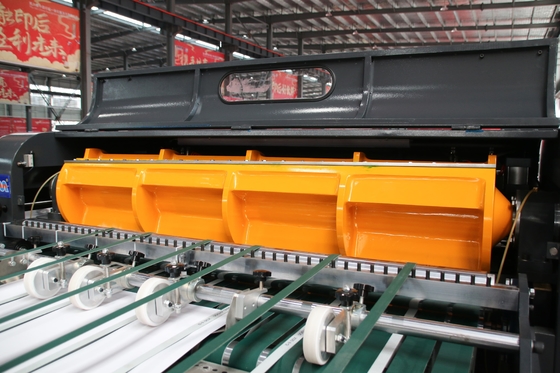

1)Top Tool Apron Adopting cutting way of advanced, so as to decrease noise and load and prolong life of knife.
2)Bottom Tool Apron Tool Apron cast on time, then processing, with characteristic of stability.
3)Main driving roller: grainy surface, controlled by the air Pressure so as to grip the paper.
1)Type:
Tool Apron fixed as the way of British, more efficiency.
2)Control Way:
Auto-adjust squareness of paper according to calibration in the Touching screen.
1)Type:
Anti-static bar, can eliminate static in the sheets.
1)Type:
Horizontal conveying with multi-stage so as to counting and piling conveniently(high efficiency dust collecting equipments).
2)The first conveying stage
To separate cutting paper quickly.
3)The Second conveying stage To conveyer paper like shape of tile with slow speed, single or linkage acting control
1)Type:
Insert after counting precisely
2)Function
A,After inputting number of paper pieces in HMI, then it can work according to requirements.
B,Refill defective product
1)AC servo motor for reclaiming blade.
2)AC motor for conveyer paper.
3)Inverter motor for the secondly conveyer strap.
4)AC motor for up and down of Stacker.
5)AC motor for front jogger.
6)AC motor for windmill of collecting waste edge.

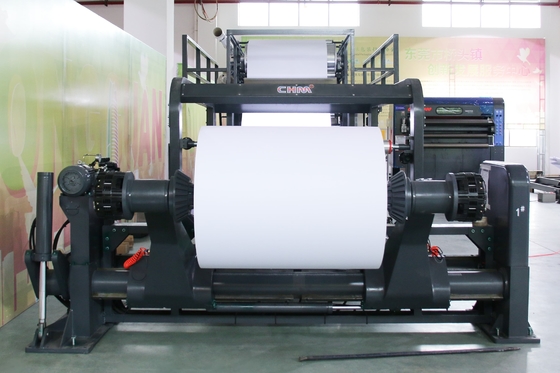

7)AC motor for unwind stand.
Put the paper roll diameter and paper weight number into touching screen, the tension will be controlled by computer automatically.
Precision sensing nozzle which easily available and sensitive Fast detects various web lines for EPC system.
