280m/Min A4 Paper Cutting And Packing Machine Pneumatic Chm Machinery

Name: 280m/Min A4 Paper Cutting And Packing Machine Pneumatic Chm Machinery
Brand: Dongguan Chun Hing Mechanical Technology Co., Ltd.
SKU: CHM-A4-4/5
Price: 285,000.00 USD
Availability: InStock

Brand Name:	CHM Machinery
Model Number:	CHM-A4-4/5
MOQ:	1 set
Price:	250000-320000
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200 sets

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Production Speed:

Max280m/min

Cutting Accuracy:

±0.2mm

Power:

32kw+18kw+18kw

Machine Type:

2 Rolls Loaded Unwind Stand *2sets Plus 1 Roll Loaded Unwind Stand *1 Set (shaftless And Hydraulic Floor Pickup System)

Diameter Of The Paper Roll:

Max.Ф1500mm

Paper Rack’s Material:

Steel

Clutch Device:

Pneumatic Braker And Control

Clip Arm’s Adjustment:

Manual Adjust By Oil Pressure

Packaging Details:

Stretch Film, shipping mark, bubble wrap

Highlight:

280m/min A4 Paper Cutting And Packing Machine

A4 Paper Cutting And Packing Machine 32kw

Pneumatic chm machinery

Product Description

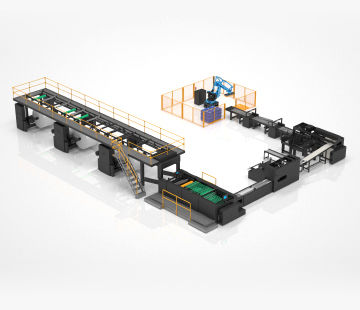

CHM-A4-4/5 A4 Cut Size Sheeting And Packaging Production Line

CHM-A4-4/5 A4 Paper Making Machine with 280m/min Speed

Product Specifications

Attribute	Value
Production speed	Max 280m/min
Cutting accuracy	±0.2mm
Power	32kw+18kw+18kw
Machine Type	2 rolls loaded unwind stand 2sets plus 1 roll loaded unwind stand 1 set (shaftless and hydraulic floor pickup system)
Diameter of the paper roll	Max.Ф1500mm
Paper rack's material	Steel
Clutch device	Pneumatic braker and control
Clip arm's adjustment	Manual adjust by oil pressure

Product Overview

The CHM-A4-4/5 A4 cut size sheeting and packaging production line incorporates advanced Twin Rotary Knife Synchronize Sheeting technologies, enabling fully automatic ream and box wrapping. As a high-capacity (10/16/23/30 reams/min) A4 copy paper production line, it represents 19 years of CHM Machinery's research and development since introducing China's first high double rotary A4 copy production line in 2006.

Technical Parameters

Parameter	CHM-A4-4	CHM-A4-5
Paper Width	845-850 mm	1055-1060 mm
Production Speed	Max 280 m/min	Max 280 m/min
Cutting Accuracy	±0.2 mm	±0.2 mm
Number of Paper Rolls	4 Rolls	5 Rolls
Pockets	4 Pockets	5 Pockets
Output of the Ream	Max 30 Reams/min	Max 37 Reams/min
Power	32 kW + 18 kW + 18 kW	34 kW + 18 kW + 18 kW
Dimension (L x W x H)	17681 × 4140 × 3190 mm	20114 × 4355 × 3190 mm

Key Systems

Automatic Tension Control System

The system automatically adjusts paper tension through PLC control when the paper passes through the inductor, increasing brake load as needed to maintain optimal tension.

High Precision Cutting Knife System

CHM-A4-4 Features:

Rotary upper and lower knives ensure ±0.2mm cutting accuracy
Anti-curve device with square bar and steel wheel maintains paper flatness

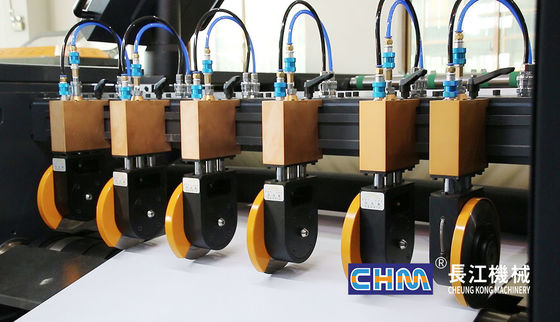

5 sets of SKH-made slitting knives with air pressure/spring mechanism

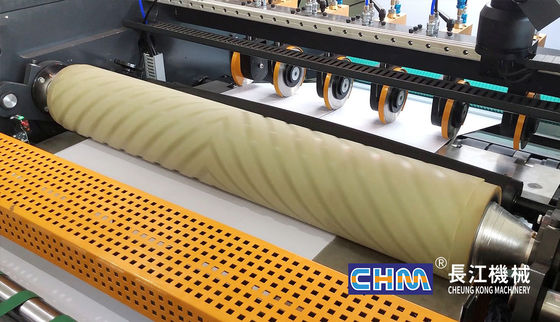

Upper wheel: Ф200×1100mm (rubber covered)
Lower wheel: Ф400×1100mm (anti-glide)

CHM-A4-5 Features:

6 sets of precision slitting knives
Upper wheel: Ф200×1150mm (rubber covered)
Lower wheel: Ф400×1210mm (anti-glide)
High precision bearing and belt drive system

Transporting System

Features level and overlapping transport with high-speed belts and press wheels, including static removal system with negative ion generator.

Paper Collecting System

Automated paper stack management with jogging device and clap paper tidy system, controlled by air vat for precise sheet alignment.

CHM-A4B Wrapping Machine

Specification	Details
Model	CHM-A4B
Paper Width	Gross width: 310 mm; Net width: 297 mm
Ream Packing Height	Max: 55 mm; Min: 45 mm
Packing Roll Diameter	Max: 1000 mm; Min: 200 mm
Design Speed	Max: 50 reams/min
Operation Speed	Max: 35 reams/min
Power	18 KW

Control System

PLC-controlled operation with functions for speed control, paper counting, output monitoring, fault alarm with automatic stop, and diagnostic code display.

Company Profile

Established in 2004, CHM Machinery operates three factories across Guangdong, Shandong, and Jiangsu with 140,000m² total area. As the world's second largest sheeting machine manufacturer, we've sold over 200 units to 100+ countries with professional R&D and after-sales teams.

Frequently Asked Questions

What advantages do your A4 production lines have?

Our production lines feature proprietary R&D capabilities and high-speed cutting technology, achieving 24/7 operation with 1600-ton maximum capacity and 70% market share.

Do you have installation references?

Our equipment serves major paper mills including ND Paper, Double A, and Sun Paper. We can provide operational videos from your region.

How do you ensure quality?

We conduct pre-production samples and final inspections before shipment, with one-year parts warranty and lifetime maintenance support.
