| Brand Name: | CHM Machinery |
| Model Number: | CHM-A3B |
| MOQ: | 1 set |
| Price: | 90000 |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 200 sets |
| Attribute | Value |
|---|---|
| Paper Width | Gross width: 430mm; Net width: 420mm |
| Ream Packing Height | Max 55mm; Min 45mm |
| Packing Roll Diameter | Max. 1000mm; Min. 200mm |
| Packing Roll Width | 750mm |
| Packing Sheets Weight | 70-100g/m² |
| Packing Sheets Grade | High-grade copy paper, high-grade office paper, high-grade offset paper etc. |
| Design Speed | Max 25 reams/min |
| Operation Speed | Max 18 reams/min |

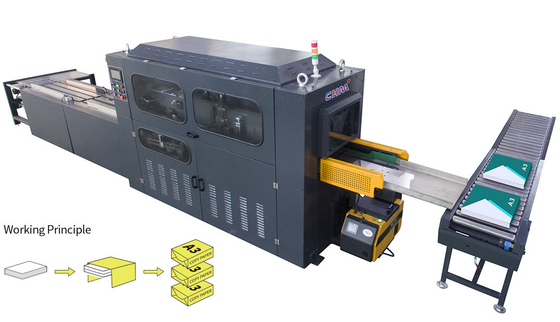

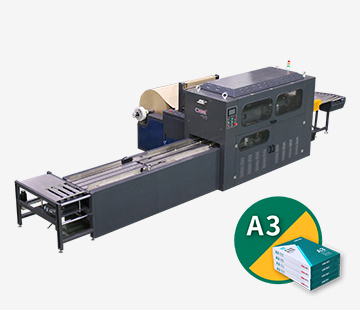

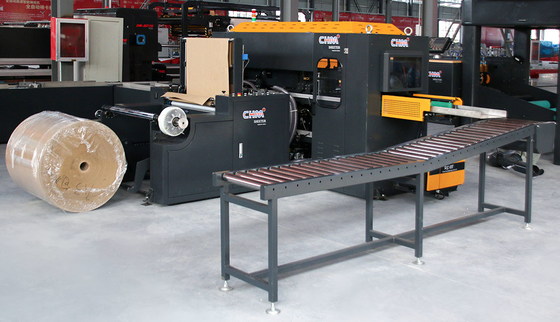

The CHM-A3B is a complete A3 paper packaging production line integrating electrical automation, PLC control systems, and mechanical automation. This high-performance equipment enables continuous production through preparation, opening, memory transmission, packaging, and discharging processes.
The entire machine is controlled by PLC with functions including speed control, paper count, paper ream output, fault alarm, and automatic stop (fault codes displayed on panel screen).
Our equipment features proprietary R&D capabilities and high-speed cutting technology. Designed for continuous 24-hour operation with maximum production capacity of 1600 tons, we maintain a 70% market share in this segment.
Our equipment is trusted by major paper mills worldwide including ND Paper (Pakistan), Double A, Sun Paper, and Industry Paper. We can provide operational videos from installations in your region.
As pioneers in paper processing technology, CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years of experience since 2004, our equipment has demonstrated decade-long reliability, supported by engineers with 15+ years of expertise.
We implement rigorous quality controls including pre-production samples before mass production and final inspection before shipment.
All components carry a 1-year warranty with lifetime maintenance support. Outside warranty periods, we provide priority spare parts and service at preferential pricing.
