| Brand Name: | CHM Machinery |
| Model Number: | CHM-A5-6（pocket） |
| MOQ: | 1 set |
| Price: | 250000-320000 |
| Payment Terms: | D/A,L/C,D/P,T/T |
| Supply Ability: | 200 sets |

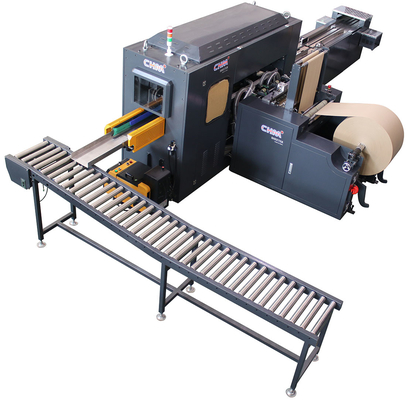

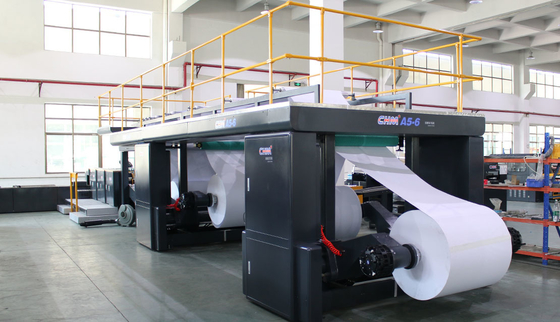

CHM brand A5 copy paper high-capacity production line featuring advanced Twin Rotary Knife Synchronize Sheeting technologies. Capable of fully automatic ream and box wrapping with production speeds up to 46 reams/min.
| Attribute | Value |
|---|---|
| Unwind Stand | 2 Sets (4 Rolls) including 3 sets of railway and trolley |
| Machine Type | Each machine table can take 2 sets of shaftless paper racks |
| Diameter of the paper roll | Max. Ф1500mm |
| Width of the paper roll | Max. Ф891mm |
| Paper rack's material | Steel |
| Parameter | Details |
|---|---|
| CHM Type | CHM-A5-6 |
| Paper Width | Gross width: 900 mm, Net width: 891 mm |
| Cutting Numbers | 6 cutting-A5 (148.5 mm width) |
| Production Speed | Max 0-200 m/min (depends on paper quality) |
| Cutting Accuracy | ±0.2 mm |
| Power | 34 kW |
When paper passes through the inductor, it automatically feedbacks to the PLC control system to adjust brake load and maintain optimal paper tension.
CHM Machinery, established in 2004, has developed into a professional paper sheeter machine manufacturer with three factories covering 140,000 square meters. We have sold over 200 units globally with customers in more than 100 countries.
We have R&D capabilities and high-speed cutting technology allowing 24/7 operation with maximum production capacity of 1600 tons. Our market share is 70%.
CHM Machinery developed China's first paper sheeter machine and A4 copy paper production line. With over 21 years experience, we have customers using our equipment for more than a decade.
